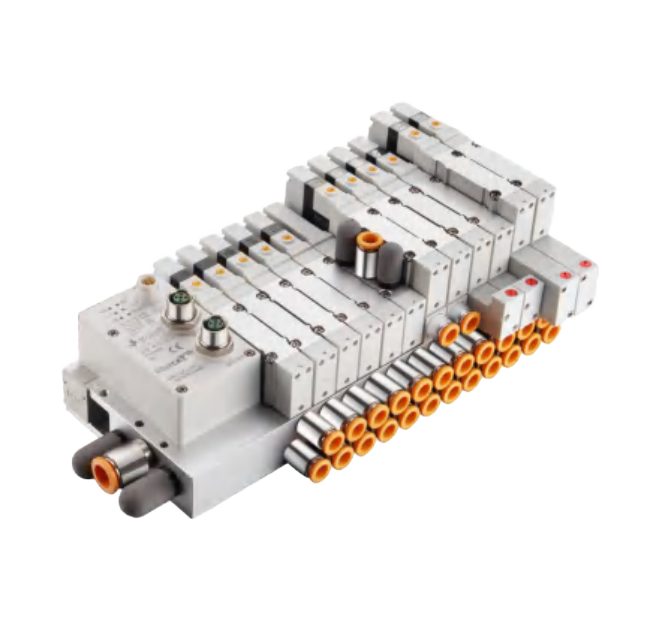

S2VM/ES2VM Stacking Module Valve Terminal

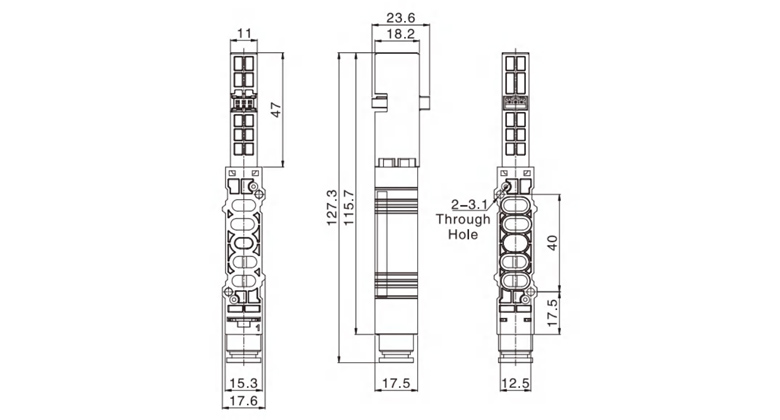

• Individual air supply stacking module: When the same valve terminal is used for different press-ures, it can independently supply air to the solenoid valve without occupying the valve position.

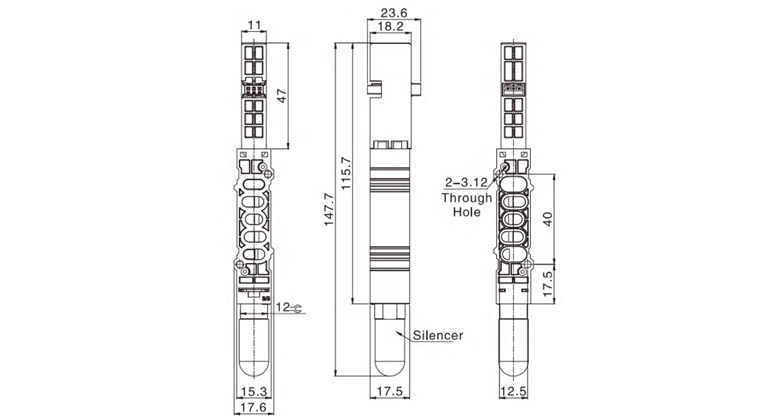

• Individual air exhaust stacking module: When using centralized exhaust on the same valve terminal, the exhaust between the valves affects each other, causing the actuator to malfunction Especially when using a 3 position center exhaust valve and a single acting cylinder, an individual air exhaust stacking module can be used without occupying the valve position.

• Air supply shutoff stacking module(With residual pressure release):On the same valve terminal, it is not necessary to shut off the main valve terminal air source. The air supply to the designated solenoid valve can be separately shut off while residual pressure is discharged. it can achieve separate maintenance and replacement of solenoid valves or cylinders with air plug in and out together.

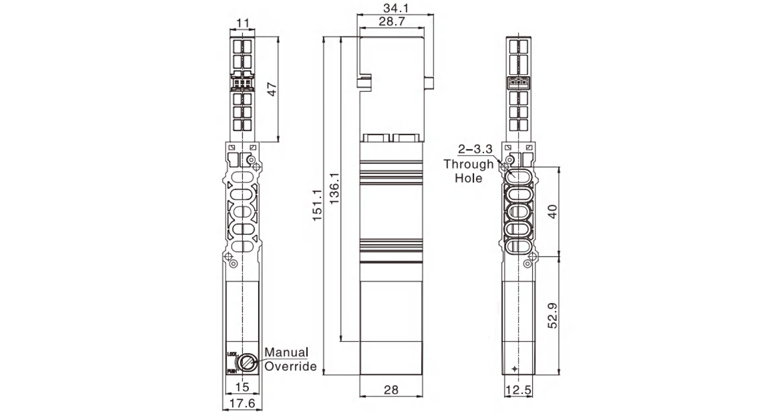

• Double check stacking module(With residual pressure release): Equipped with a 5/3 center exhaust valve on the same valve terminal, the cylinder can stop for a long period of time in the middle, and equipped with a 5/2 valve can prevent the cylinder from falling, the reby improvingthe safety performance of the valve terminal.
