ESR

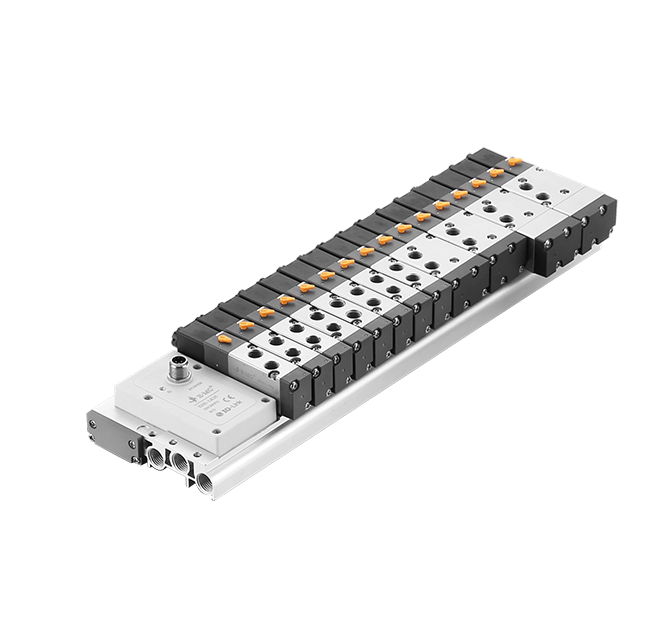

ESR Valve Terminal(l0-Link)
-
Compatible Protocols: 1/0-Link, general-purpose 5-wire unshielded cables are used for connection l/O-Link master and exchange data with PLC.
-
16 outputs, Max.16pcs single control/8pcs double control/16pcs stations.
-
Support hot swap, data is stored in the l/O-Link master, no need to reconfigure parameters to replace the valve terminal, the newly replaced is automatically identified and start to work at once,reduce equipment downtime,reduce maintenance costs, and improve production efficiency.
-
Diagnostic functions: system diagnosis, communication error, short circuit protection.
-
Independent of fieldbus, possess strong industrial network compatibility, supply popular fieldbus and industry Ethernet.
-
Simple installation and configuration, easy to operate.
-
Communication is completely digitally transmitted, reduce the accuracy loss of analog-to-digitalconversion, possess strong anti-interference ability.
-

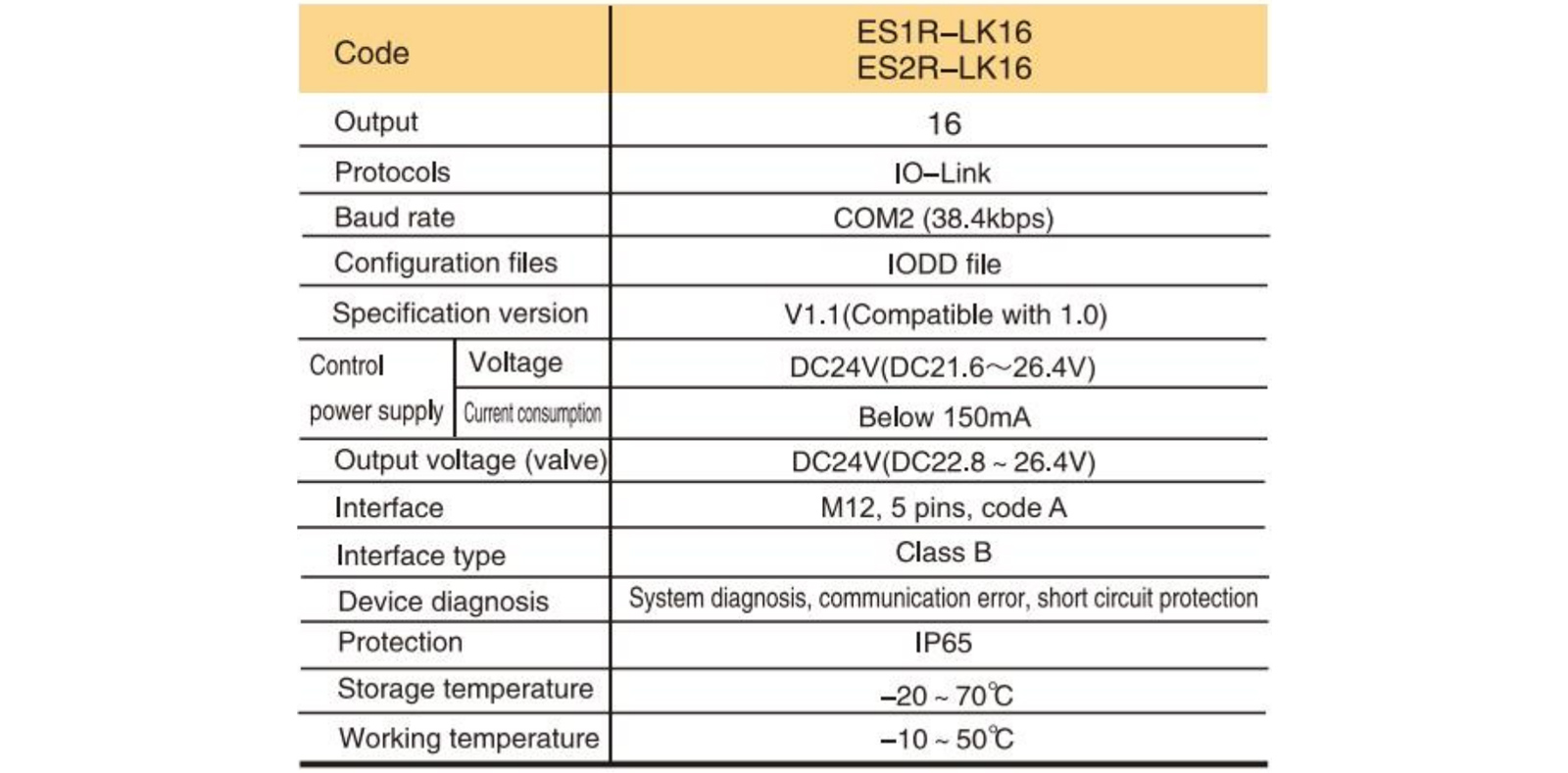

Product specifications
-
Basic parameters
-
Application industry
-
Recommended Products
Product specifications
Basic parameters
Application industry
Recommended Products
