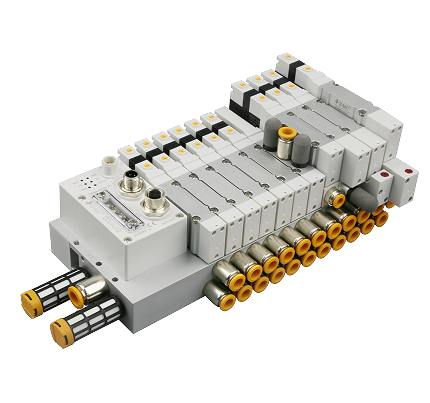

ES2VMT Stacking Module Valve Terminal (IP65)

Features

•

  Individual exhaust stack module: When using centralized exhaust on the same valve island, the exhaust between valves can affect each other and cause actuator misoperation, especially when using three position relief valves and single acting cylinders. The individual exhaust stack module can be used without occupying the valve position.

•

  Intake cut-off stack module (with residual pressure release): lt can independently cut off the gas supply to designated solenoid valves and discharge residual pressure on the same valve island without cutting off the main valve island gas source. lt can achieve separate maintenance and replacement of solenoid valves or cylinders with gas insertion and removal. *Mid position check stack module (with residual pressure release): Equipped with a three position five way medium release valve on the same valve island, the cylinder can be stopped for a long time, and equipped with two position five way valves can prevent the cylinder from falling, thereby improving the safety performance of the valve island.
