SV

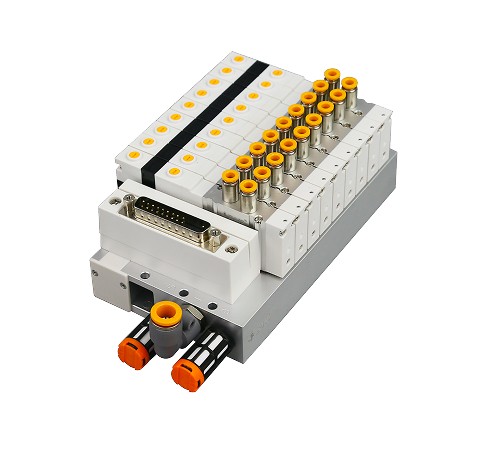

SV Series Solenoid Valve&Valve Terminal
-
Integrated valve terminal , integrated wiring ;Adopt25 pins D-sub connector.
-
Centralized air inlet and exhaust, available for top ported ,side ported and bottom ported，compact structure.
-
Patent design: the pilots of double control valve are on same side; Wiring and piping are on same side.
-
5/2 ways,5/3 ways,5/4 ways(2pcs 3/2 ways ) can be integrated on same valve terminal.
-
0.8W per coil.
-
Product specifications
-

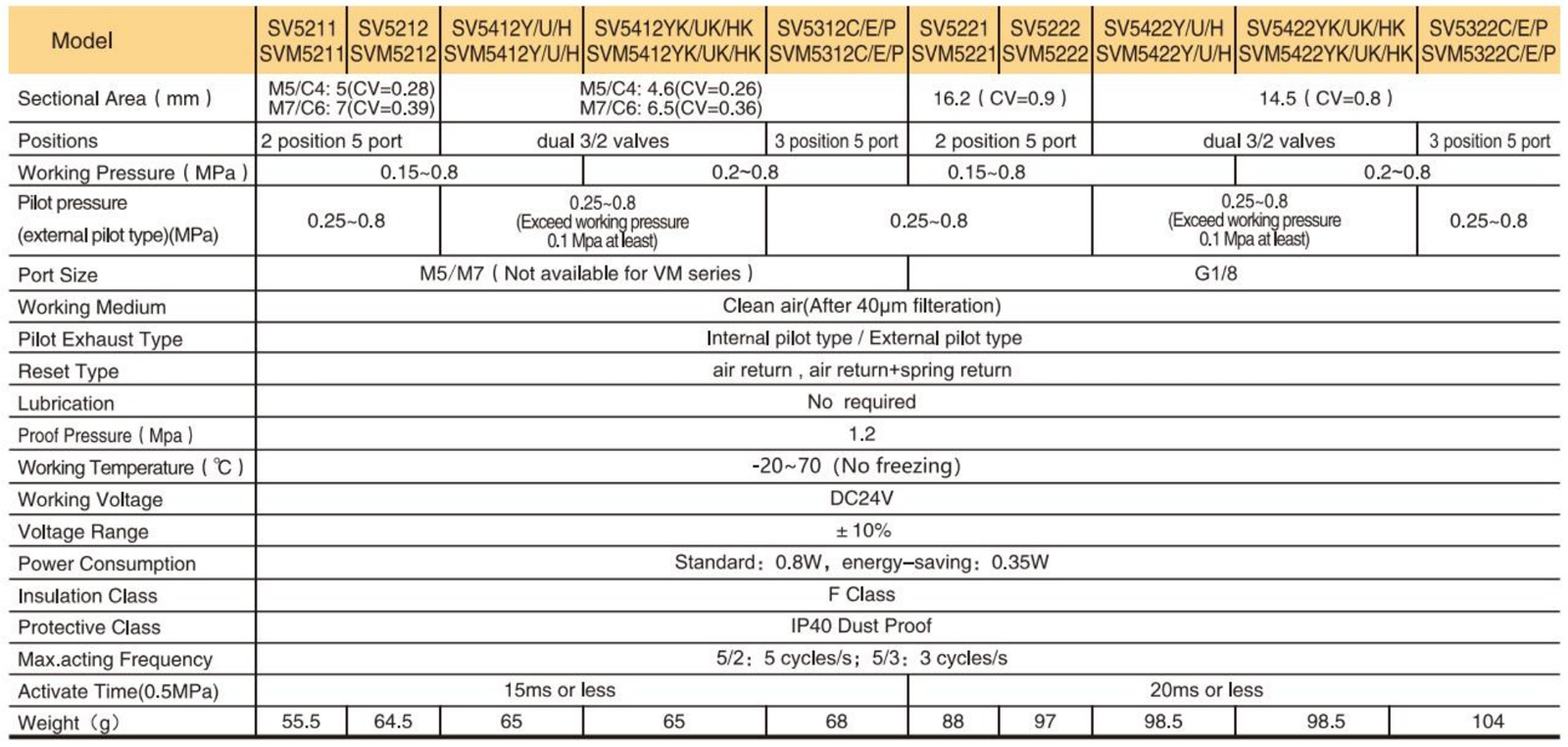

Basic parameters
-
Application industry
-
Related products
Product specifications
Basic parameters
Solenoid valve
-
SV5211 -
SV5212/SV5412 -
SV5312 -
SV5221 -
SV5222/SV5422 -
SV5322
Application industry
Related products
