S1PV 3/2-way Integrated Valve Terminal

• 3/2-way direct-acting solenoid valve terminal, with sensitive shifting and the ability to start under zero pressure or vacuum conditions;

• The valve temminal integrates two solenoid valves in one valve position with integrated wiring, significantly reducing the installation space in the length direction;

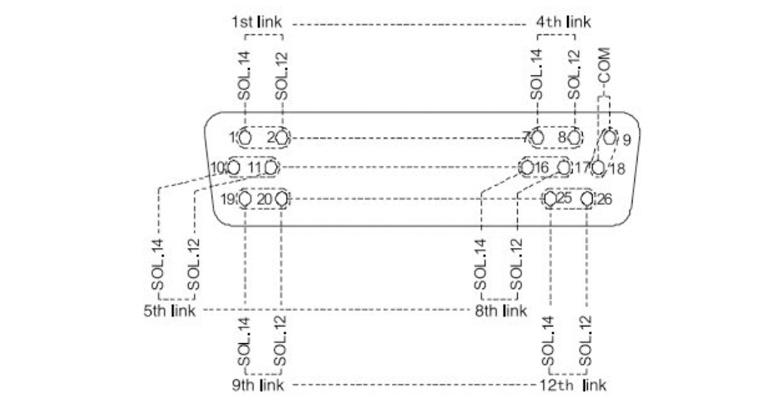

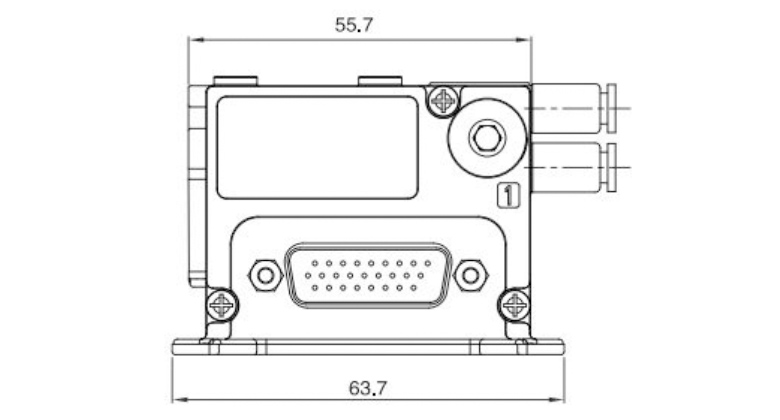

• Uses a high-density 26-pin D-sub connector to reduce installation time, and there is no polarity distinction on the COM terinal;

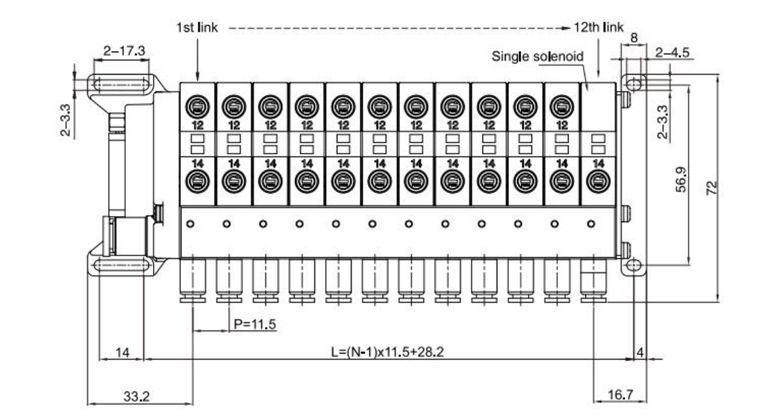

• Maximum number of valve positions is 12, accommodating 24 solenoid valves;

• The integrated valve terminal features a high-strength aluminum alloy manifold plate. resulting in a compact structure with a sleek and elegant overall appearance, and it holds a design patent;

• The patented structure with two solenoid valves on the same side allows wiring in the same direction, with a modular design that facilitates maintenance;

• Manual buttons are provided for easy maintenance, installation, and commissioning;

• Solenoid valves use SV series pilot valves, ensuring stable and reliable performance;

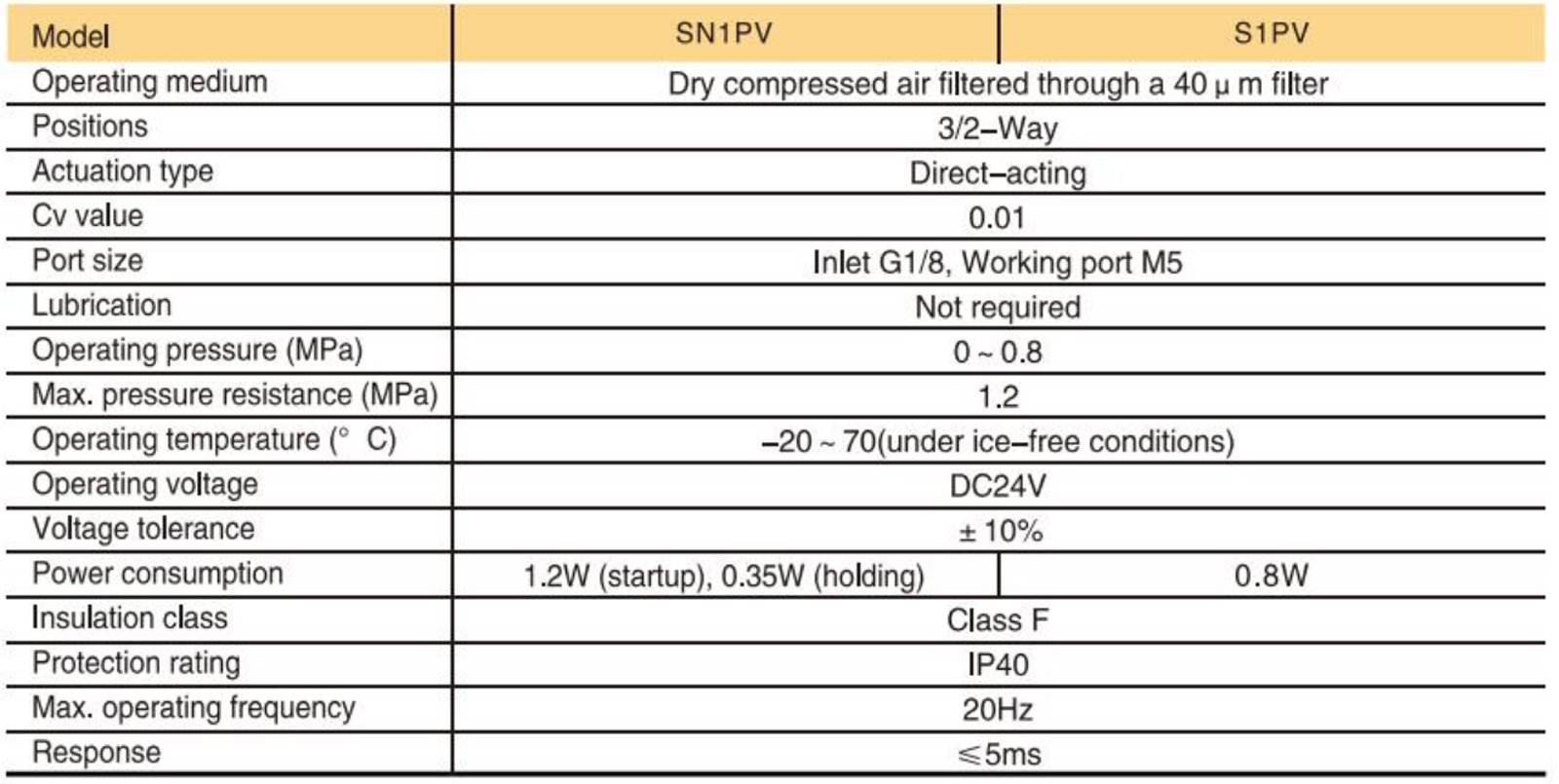

• Coil power standard type is 0.8W, low-power energy-saving type is 0.35W (suitable lona-term eneraized applications)
