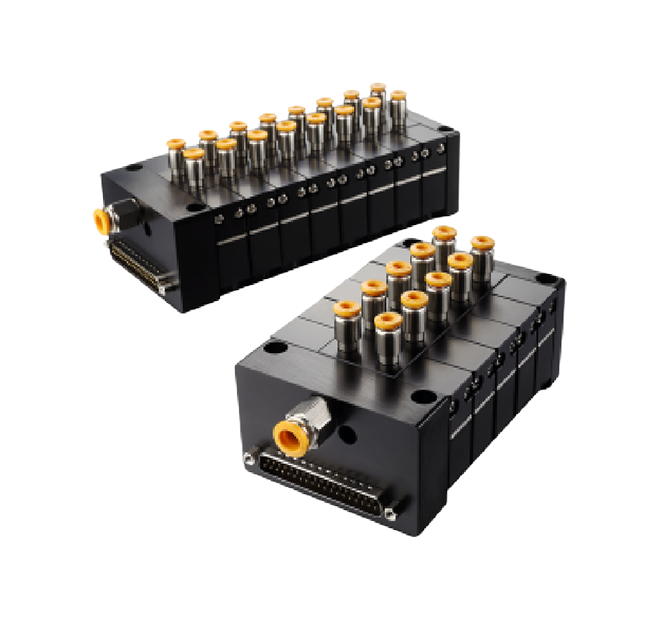

S1PA 3/2 integrated manifold
-
3/2 direct acting solenoid valve, sensitive to direction change, 0 pressure/low vacuum start.
-
The integrated manifold adopts a dual row electromagnetic valve integrated wiring, greatly reducing the installation space in the length direction.
-

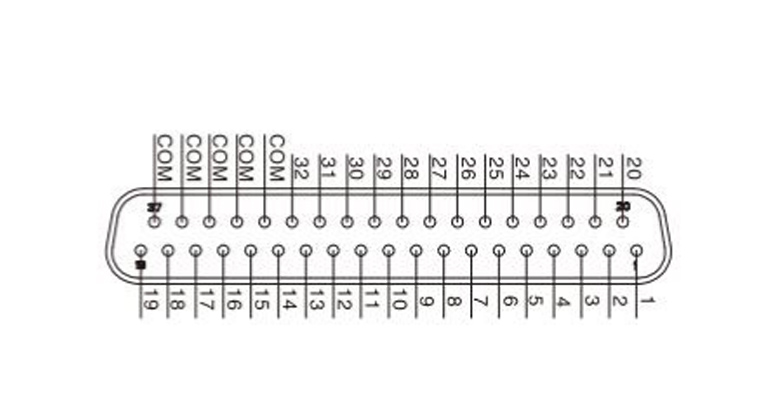

Using a 37 pin D-sub socket reduces installation time, and the COM common terminal has no positive or negative polarity.
-
Product specifications
-
Features
-

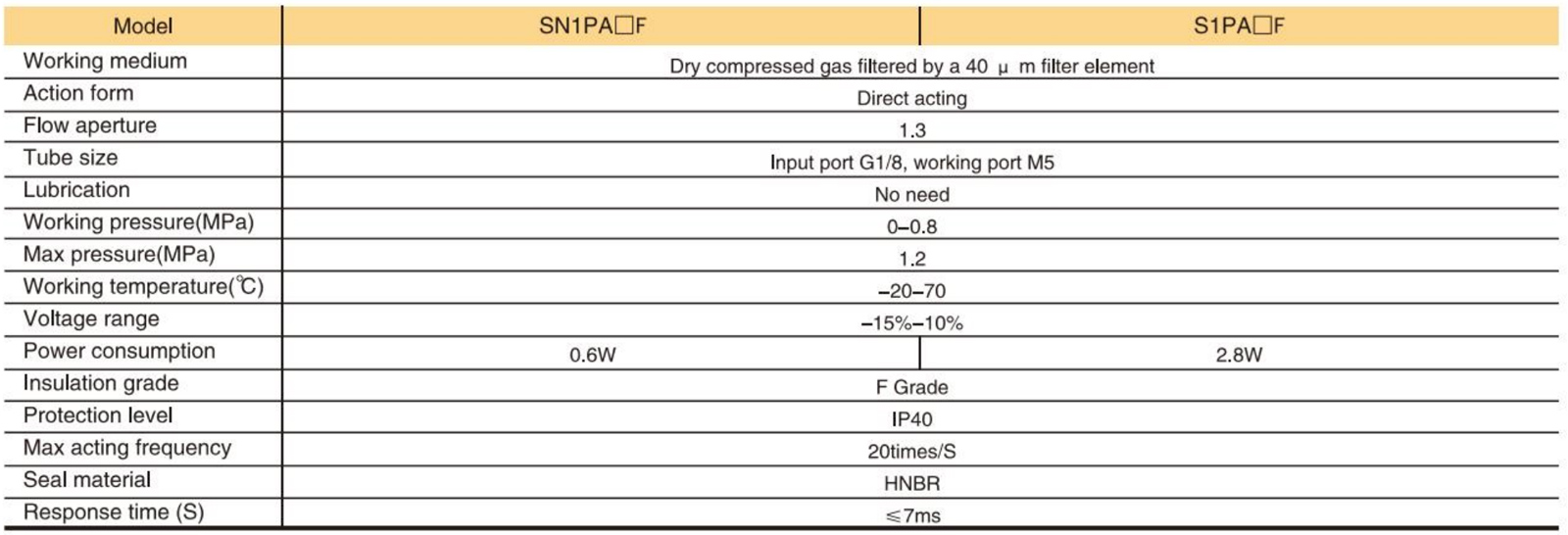

Basic parameters
-
Application industry
-
Recommended Products
Product specifications
Features
-
The integrated valve group single valve adopts a pin type coil and a plate type installation with sealing gasket, which is easy to maintain; On the basis of the current S1P series, upgrades and modifications will be made, with the main changes being as follows:
The circulation aperture has been changed from ф 1.1mm to ф 1.3mm, increasing the flow rate. -
The valve body has been changed from processing aluminum alloy profiles to precision injection molding, effectively ensuring product consistency and avoiding burrs.
The integrated valve group single valve adopts a pin type coil and a plate type installation with sealing gasket, which is easy to maintain; On the basis of the current S1P series, upgrades and modifications will be made, with the main changes being as follows. -
Add manual buttons for easy maintenance, installation, and debugging.
The front and rear end plates have been changed from aluminum alloy profiles to die casting while achieving product lightweighting -
Add manual buttons for easy maintenance, installation, and debugging.
The front and rear end plates have been changed from aluminum alloy profiles to die castingwhile achieving product lightweighting
Basic parameters
