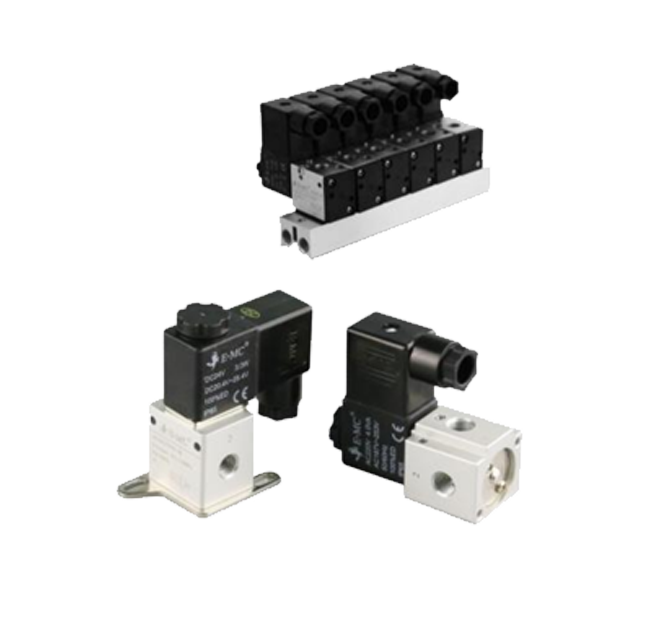

ET307/ETA307/ET307S Direct Acting Solenoid Valve(3/2 way)

• Direct acting,sensitive action.

• Zero pressure starting,suitable for vacuum application.

• Universal for N.C.N.O.type,suitable for 8 kinds applications.

• Coaxial shut-off design,balanced spool without back pressure, no influence from working medium pressure,high anti-dirty and excellent sealing.

• Multiple mounting types,manual button equipped for convenient debugging.

• Valve body is made by high strength aluminum alloy, and manufactured at one time,with hard oxidized surface treatment.
