EHE34

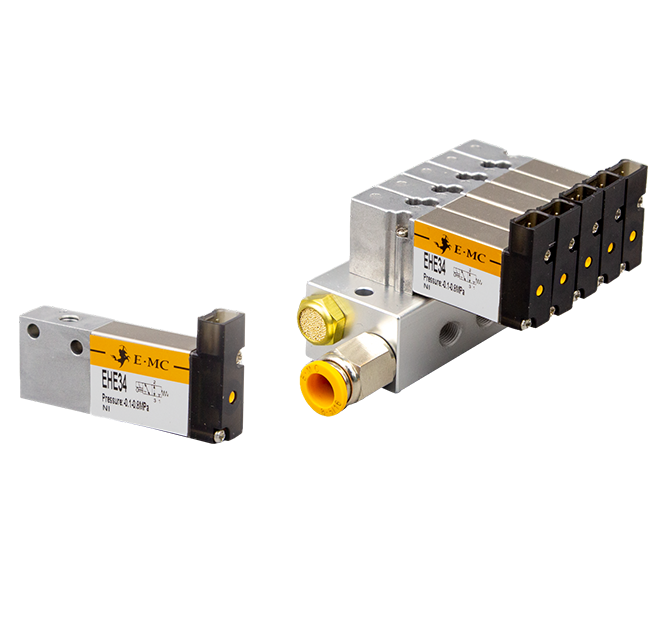

EHE34 3-way Fast-switching Valve
-
Direct-acting structural design,ensuring sensitive operation and rapid response;
-
Fast response and high-speed switching. with an opening response time of 4ms and a closing response time of 2ms;
-
With a manual pushbutton for more convenient operation.
-
Product specifications
-
Features
-
Basic parameters
-
Application
-
Related products
Product specifications
Features
-
Direct-acting structural design,ensuring sensitive operation and rapid response;
-
Fast response and high-speed switching. with an opening response time of 4ms and a closing response time of 2ms;
-
Precision die-casting valve body process,achieving a high flow rate of up to 110L/min;
-
Coaxial,balanced spool design,high durablity and sealing;
-
Zero-pressure start,suitable for vacuum;
-
3/2-way valve,versatile for high-speed applications;
-

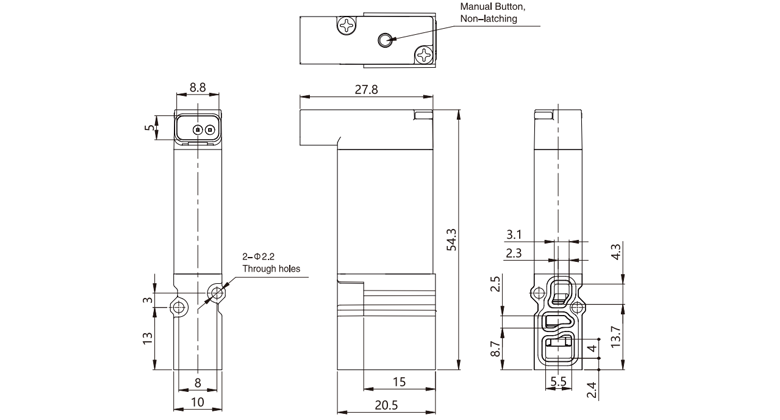

Optional pipe mounting and panel mounting methods;
-

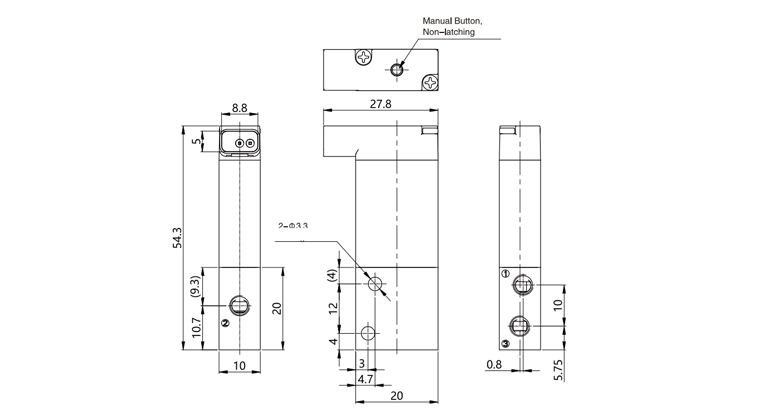

with a manual pushbutton for more convenient operation.

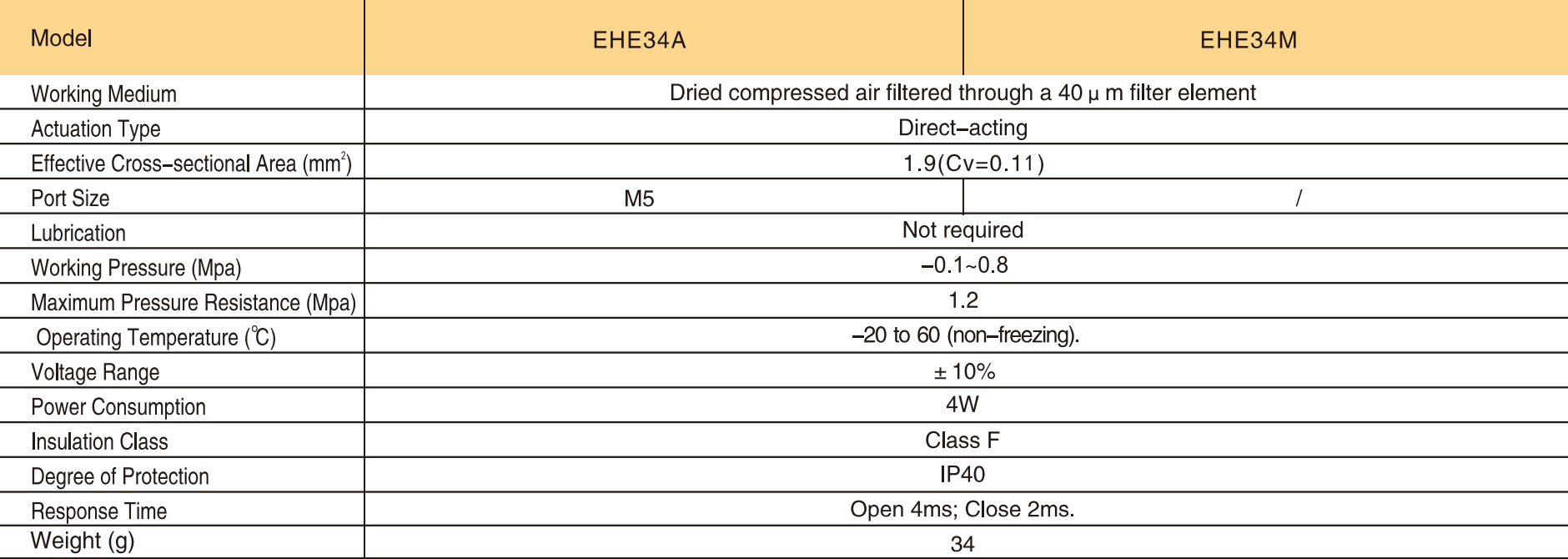

Basic parameters
-

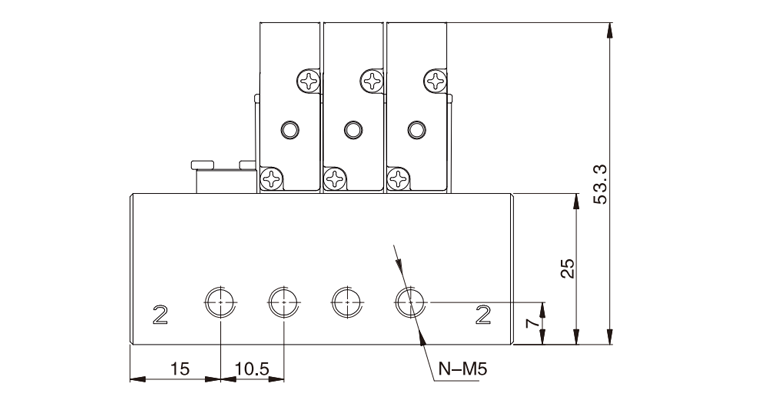

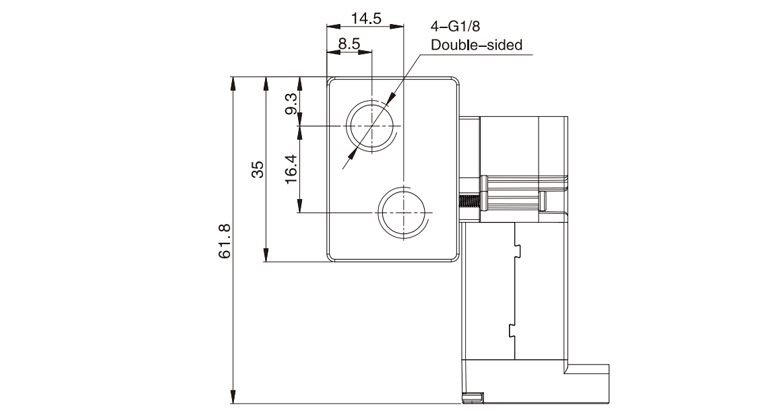

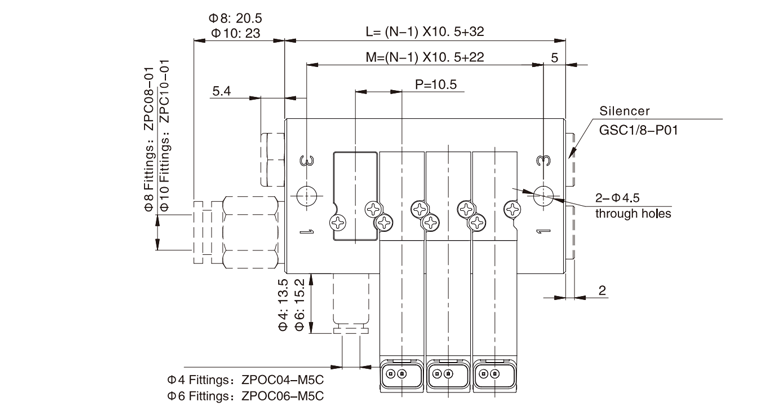

Single Valve-EHE34A -
Single Valve-EHE34M -
-
-
-
Normally Closed (N.C.) -
Normally Open (N.O.)
