EHE35

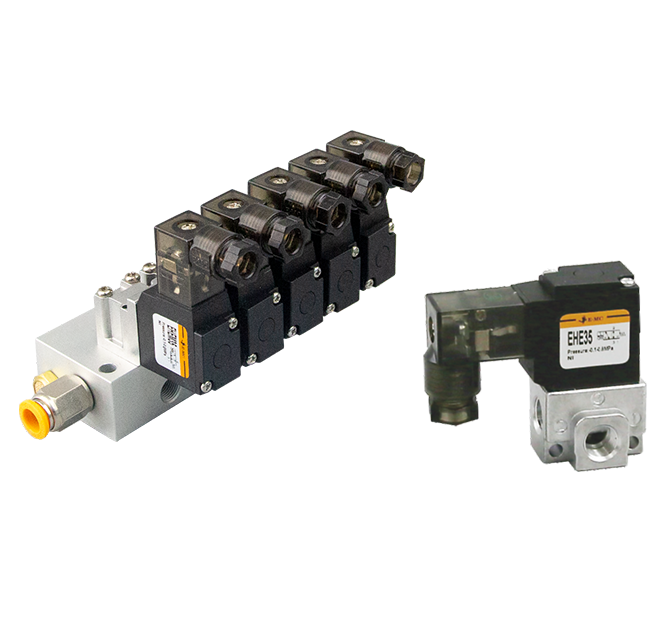

EHE35 3-way High-speed Valve
-
Direct-acting structural design,ensuring sensitive operation and rapid response;
-
Fast response and high-speed switching,with an opening response time of 6ms and a closing response time of 2ms.
-
with a manual pushbutton for more convenient operation.
-
Product specifications
-
Features
-
Basic parameters
-
Application
-
Related products
Product specifications
Features
-
Direct-acting structural design,ensuring sensitive operation and rapid response;
-
Fast response and high-speed switching,with an opening response time of 6ms and a closing response time of 2ms.
-
Precision die-cast valve body with a standard high flow rate of 180L/min;
-
Coaxial,balanced spool design,high durability and sealing.
-
Zero-pressure start,suitable for vacuum.
-
3/2-way valve,versatile for high-speed applications.
-
Optional pipe mounting and panel mounting methods.
-
with a manual pushbutton for more convenient operation.

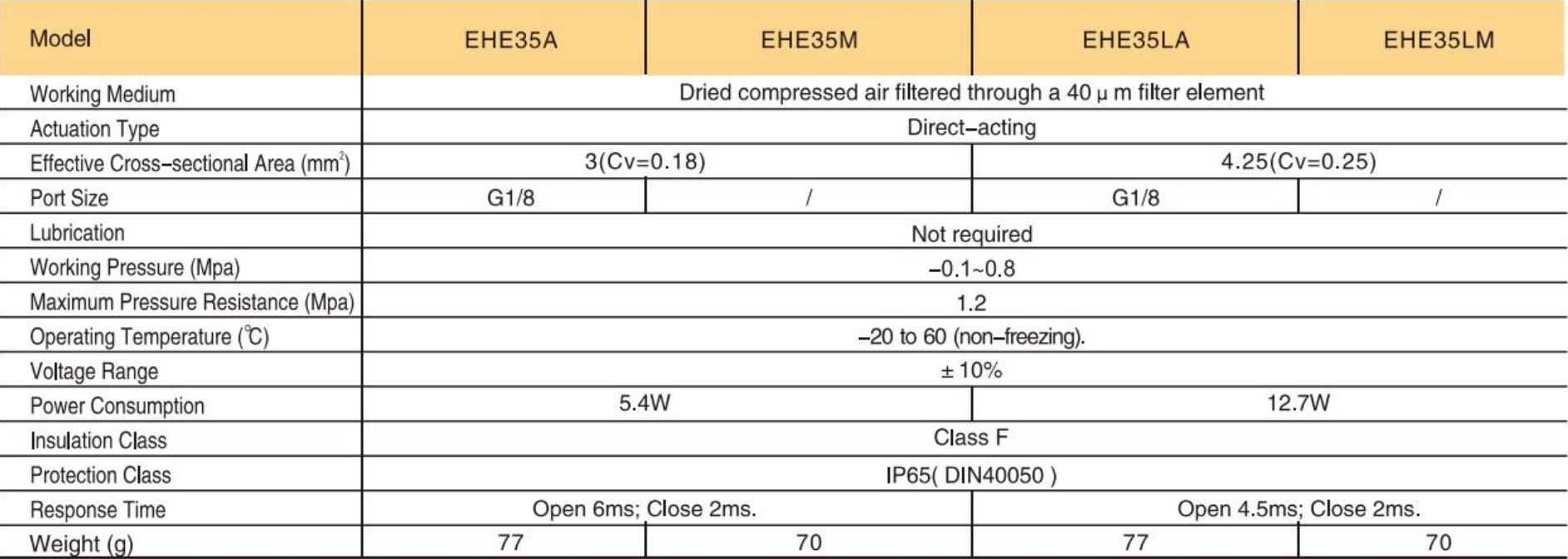

Basic parameters
-

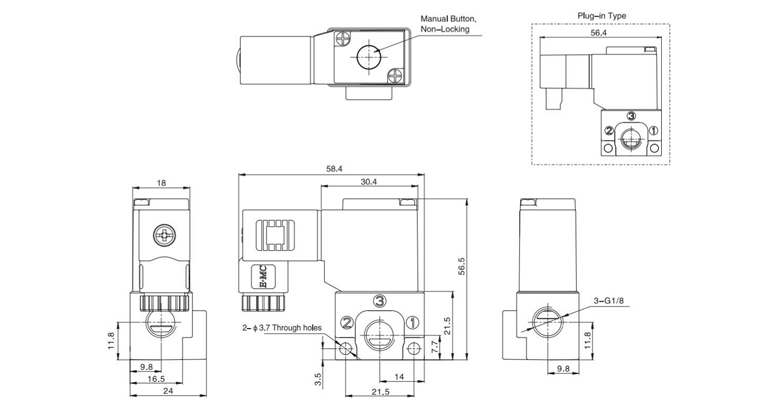

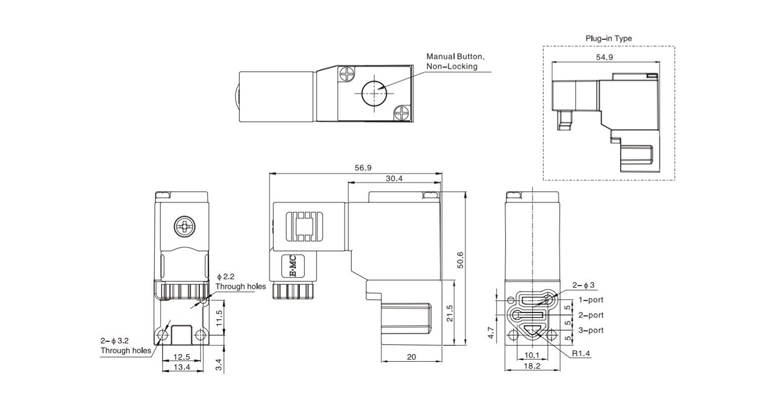

EHE35A Terminal Box Type/Plug-in Type -

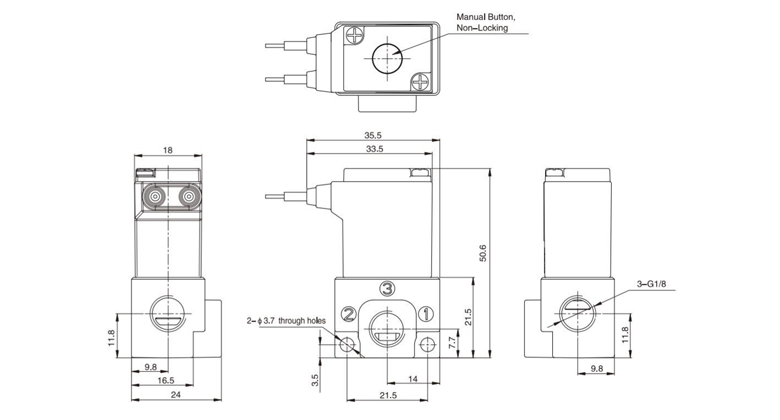

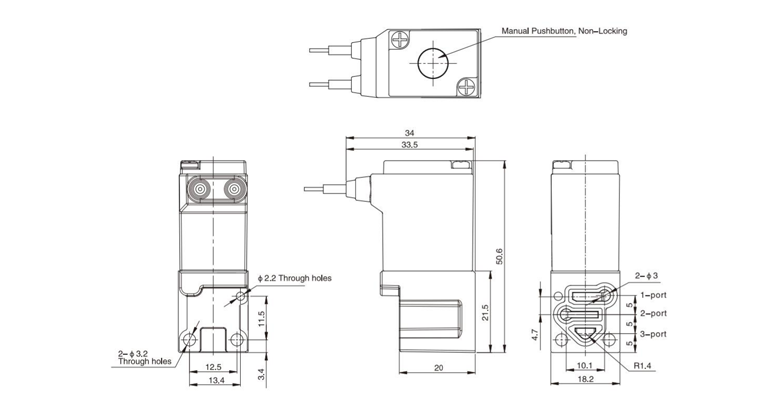

EHE35A Leaded Type -
EHE35M Terminal Box Type/Plug-in Type -
EHE35M Leaded Type -
-
-
-
Normally Closed (N.C.) -
Normally Open (N.O.)
Application
