EHE

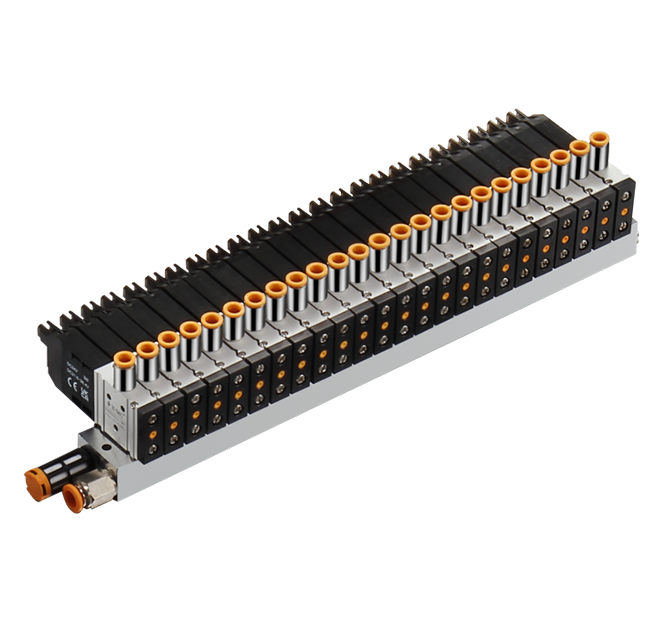

EHE Fast-Switching Valves
-
Direct acting, sensitive action;
-
Zero pressure starting, suitable for vacuum application;
-
Universal for N . C .& N . O . tpye;
-
Coaxial shut - off design, balanced spool without back pressure, no influence from working medium pressure, high anti-dirty and excellent sealing;
-
Manual button equipped for convenient debugging.
-
Product specifications
-
Features
-
Basic parameters
-
Application
-
Related products
Product specifications
Features
-
High-speed driving chip is adopted,with power as low as 2W and response time as low as 2ms
-
Large flow rate of 100L/min and long service life of more than 200 million times
-
Coaxial cut-off structure,no back pressure balance valve core. solenoid valve action is not affected by working medium pressure, with strong dirt resistance and good sealing performance
-
Zero pressure start,which can be used for vacuum
-
3/2 way,Universal for N.C.N.O.type,suitable for 8 kinds applications such as high-speed screening,dispensing,gluing,packaging and high-speed vacuum adsorption and handling,etc.
-
Single valve and manifold installation methods,and manual lever is set to facilitate installation and debugging

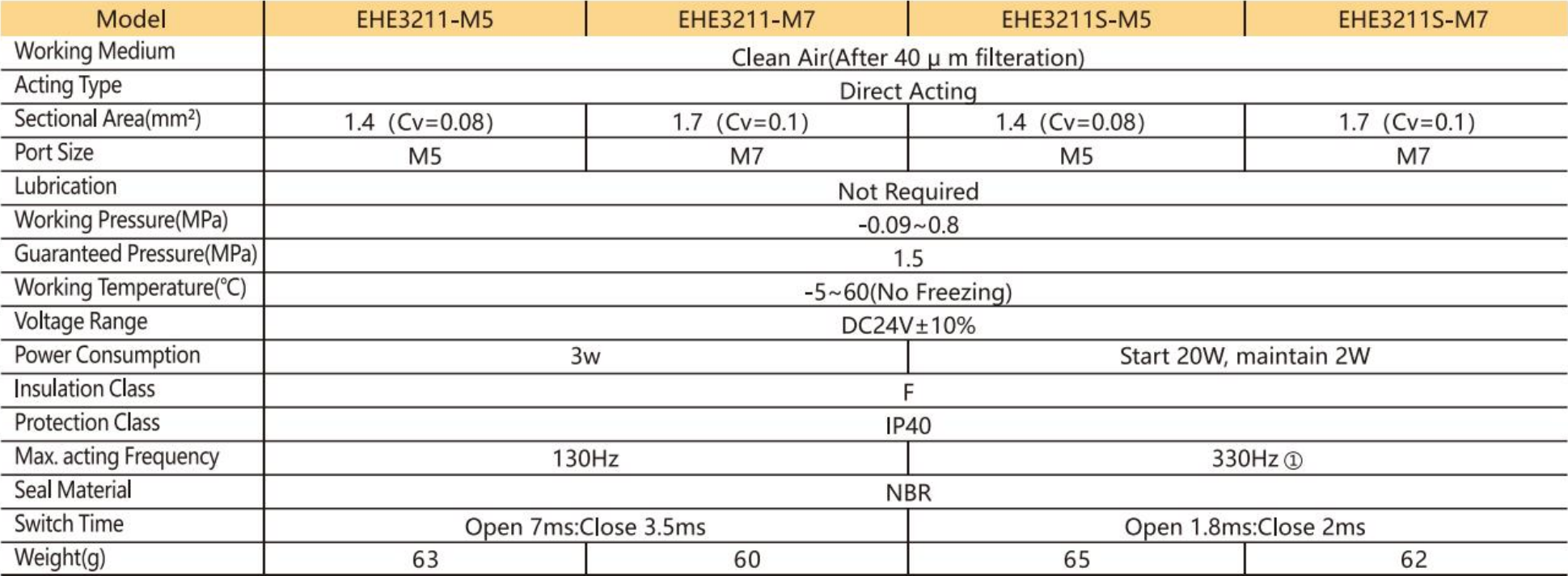

Basic parameters
-
-

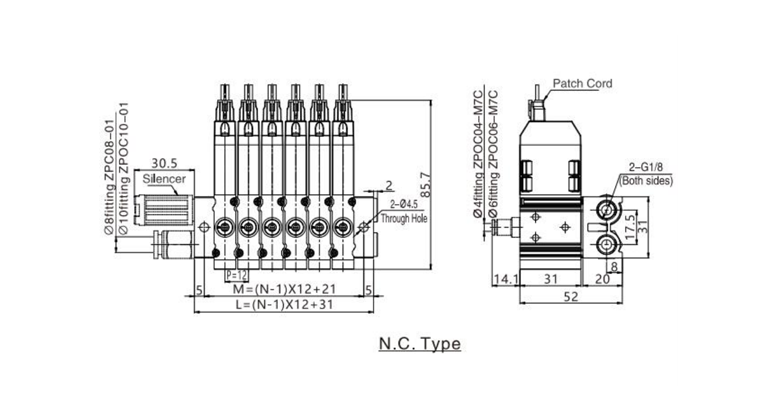

N.C.Type -
N.O.Type
Application
