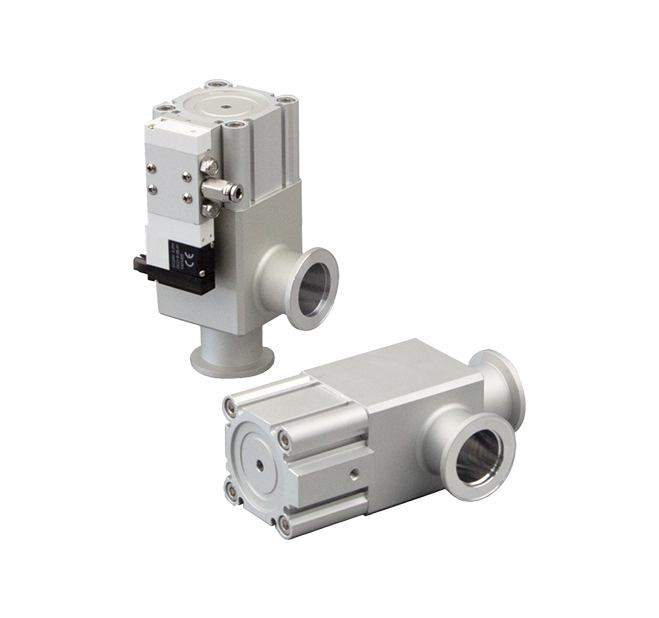

EXLA(V)/F(V) Series High Vacuum Angle Valve

• EXLA(V) High Vacuum Angle Valve, featuring a normally closed single-acting design, achieves constant pressure sealing thus suitable forcomplex client desians without leakage.

• Highly extruded one-piece aluminum alloy valve body,providing high strength, hardness, and corrosion resistance, extending service life.

• Long-life stainless steel bellows design, isolating the O-ring inside the valve body from outgassing in a vacuum environment, meeting hiah vacuum requirements.

• All-imported fluorocarbon rubber sealing rings, meeting hich-quality and long-life desian specifications.

• Offers pilot ports in four directions.

• Entire series is copper and zinc-free, meeting the high standards of the lithium battery and semiconductor industries.
