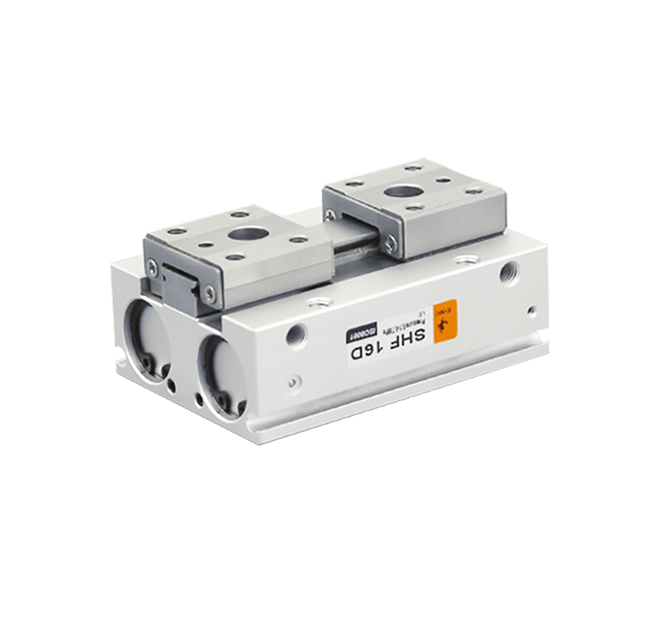

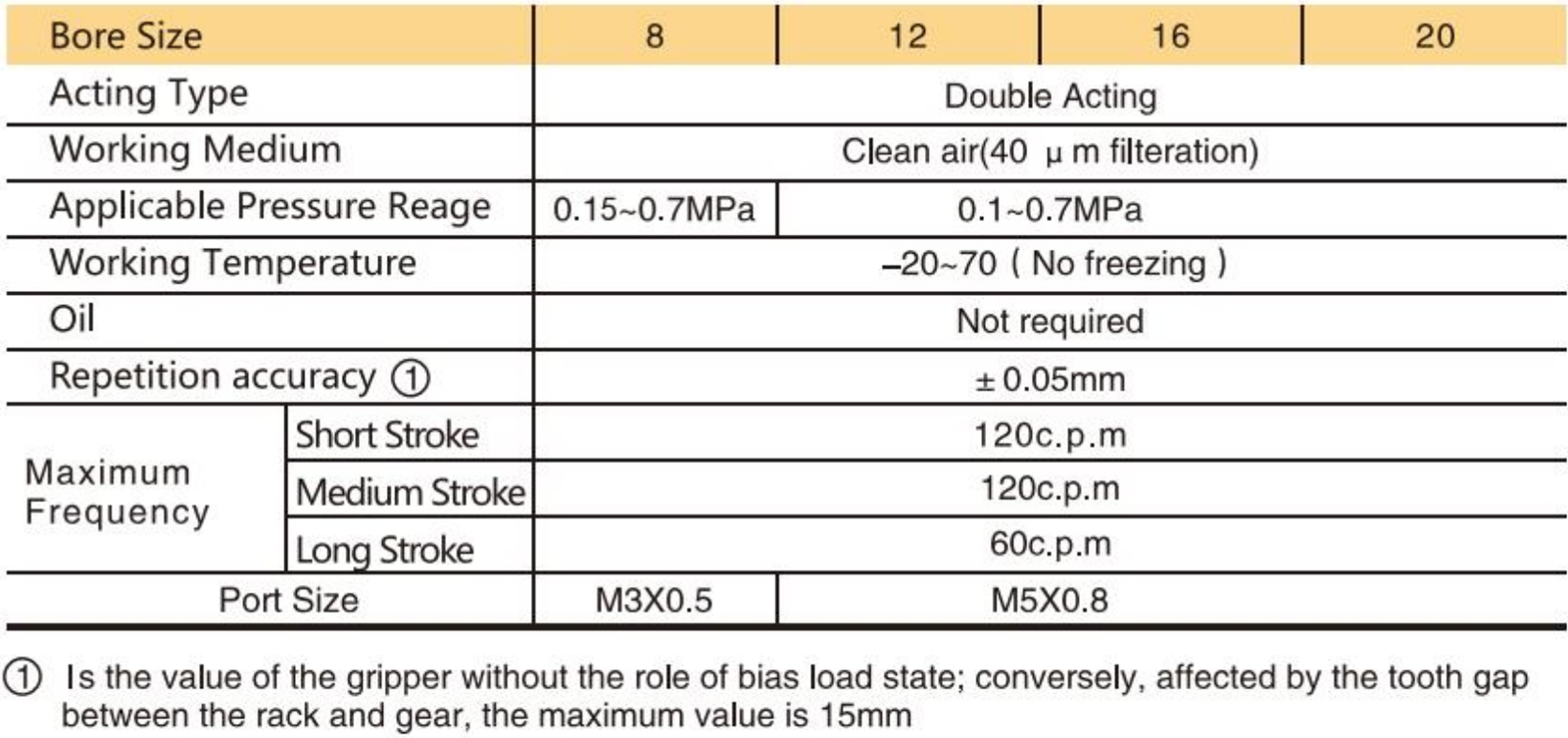

SHF Series Low Profile Air Gripper

• Stainless steel gripper & linear ball guide design, high precision, good rigidity,good corrosion resistance for longer life spans.

• Double piston structure design can provide bigger clamping force.

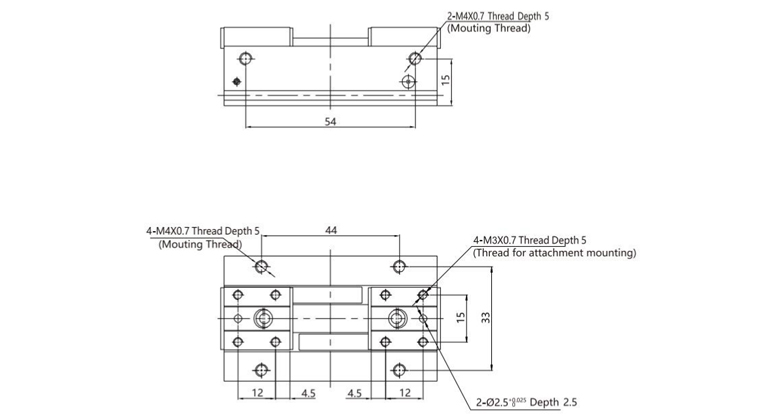

• The bottom of the body is equipped with positioning pin holes to effectively enhance the installation accuracy and improve the consistency of repeated disassembly and positioning.

• The Gripper can be installed from four directions freely.

• Ompared with the parallel air gripper with the same clamping force, this thin body design reduces the overall height by 50%, which effectively reduces the installation space and shaking torque, reduces the deviation, and improves the accuracy.

• The body is designed with a buried induction switch slot to reduce the space.

• All series are with magnetic.
