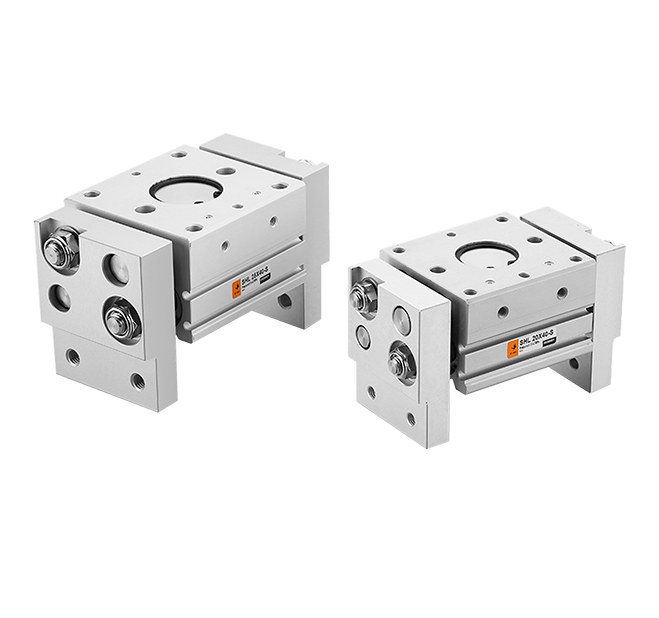

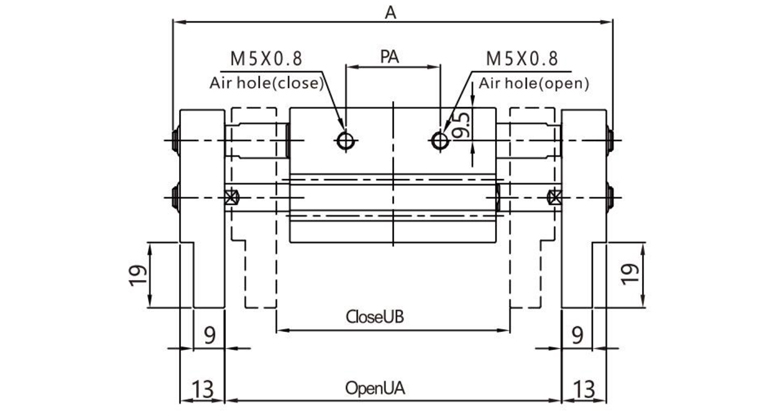

SHL Wide Type Parallel Style Air Gripper

• The gripper opening or closing can be precisely synchronized with the rack & pinion mechanism；

• Two round and two square Slots on the barrel, Multiple magnet switch are available；

• Multiple bore size and stroke are available；

• Double pistons design to increase the clamping force；

• Multiple options for installing and fixing；

• Convenience to mount workpiece；

• Long finger stroke, suitable for gripping large objects；

• Magnet is included in the standard configuration.

Get the product

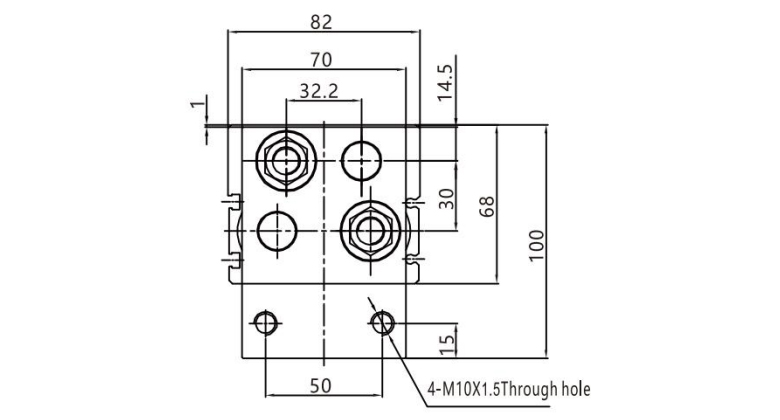

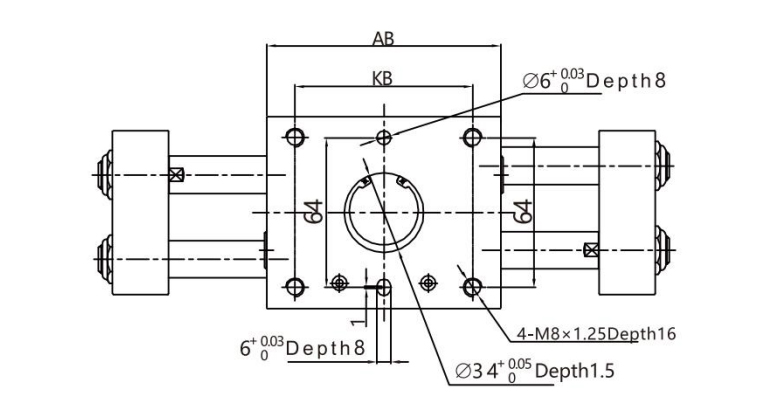

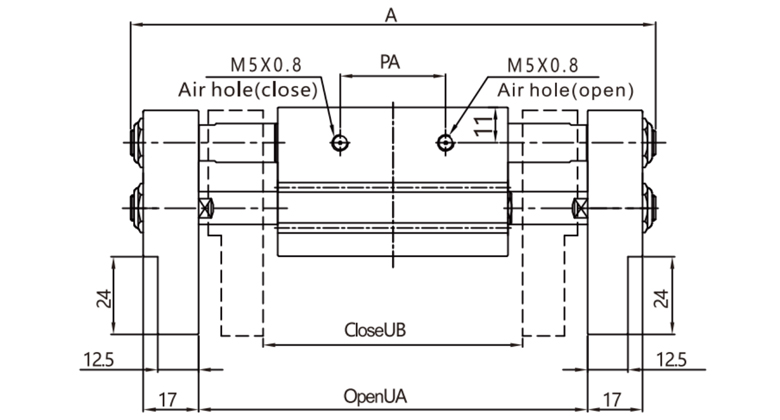

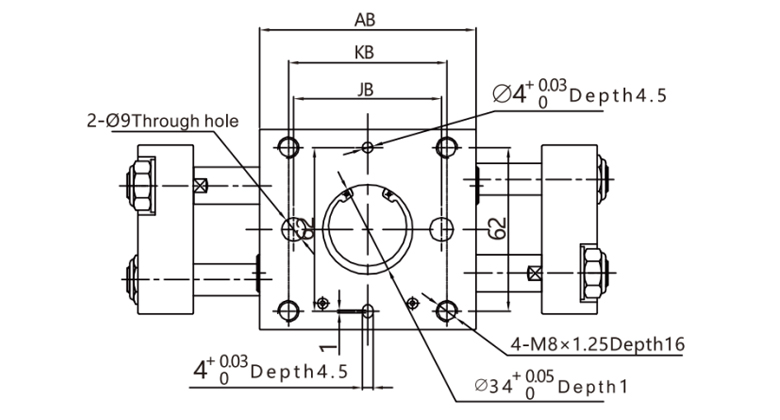

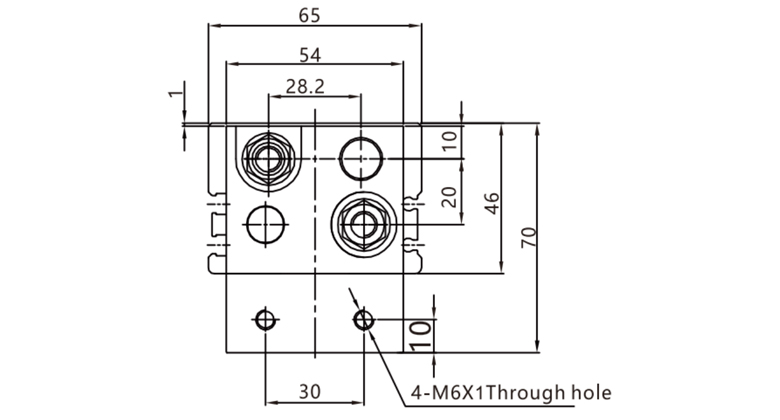

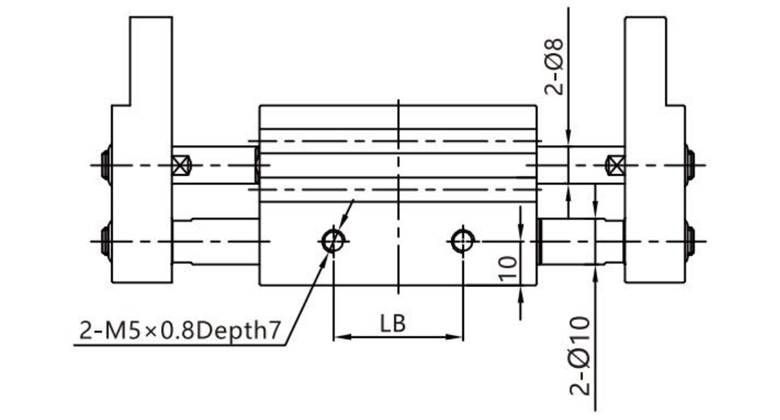

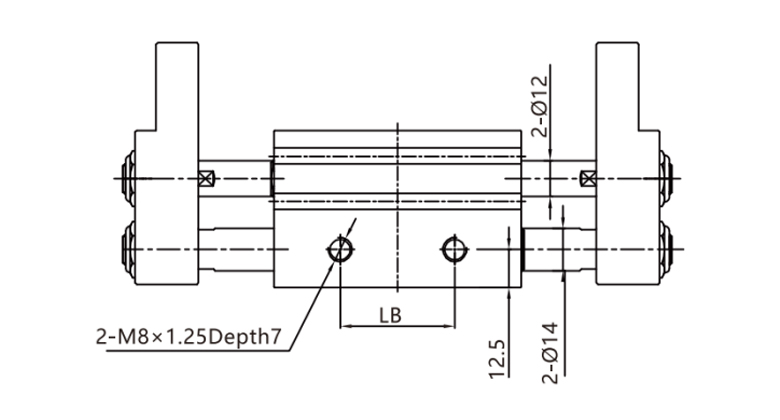

3D/2D CAD

Product brochure
