Product specifications
| Bore(mm) | 6 | 8 | 12 | 16 | 20 | 25 |
| Acting Type | Double Acting | |||||
| Working Medium | Clean Air(after 40 μ m filtration) | |||||
| Working Pressure(MPa) | 0.15~0.7(MPa) | |||||
| Guaranteed Pressure(MPa) | 1.05(MPa) | |||||
| Cushion | Rubber cushion on both ends. Shock absorber cushion | |||||
| Working Temperature(℃) | -20~70(NO Freezing) | |||||
| Piston Speed(mm/s) | 50~500 | |||||
| Stroke tolerance | Stroke≤100+1.0，Stroke>100+1.5 | |||||
| Port Size | M5x0.8 | G1/8 | ||||
Basic parameters
Main Dimensions
-

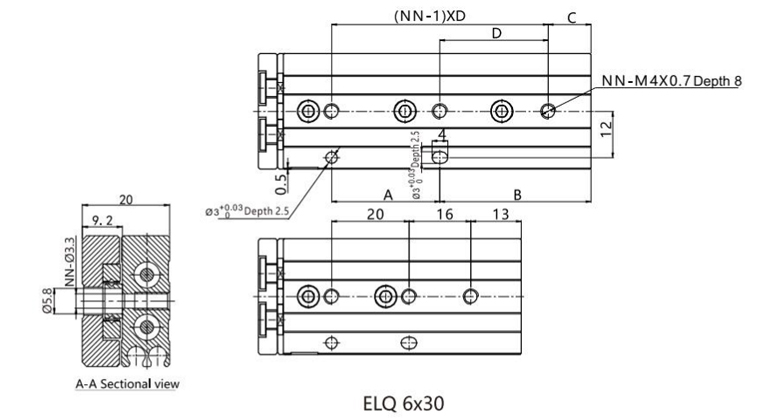

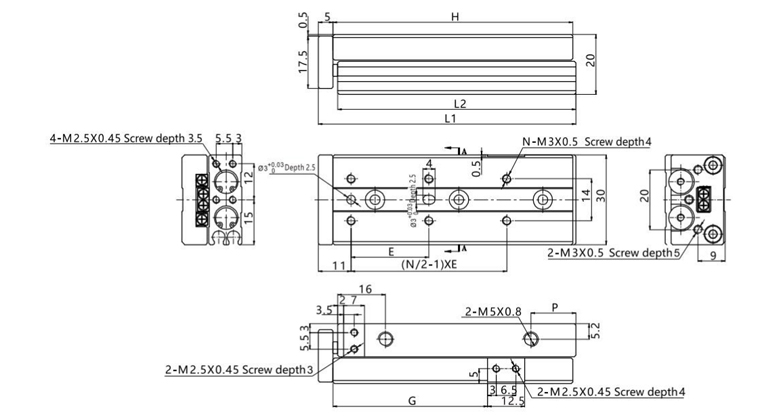

ELQ 6 -
ELQ 6 -

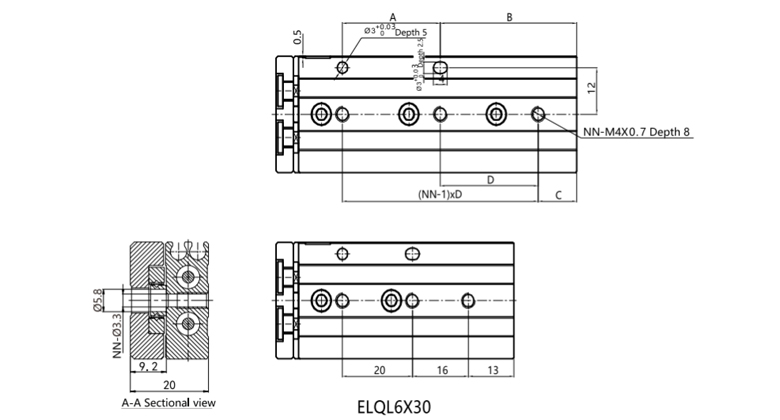

ELQL 6 -
ELQL 6 -

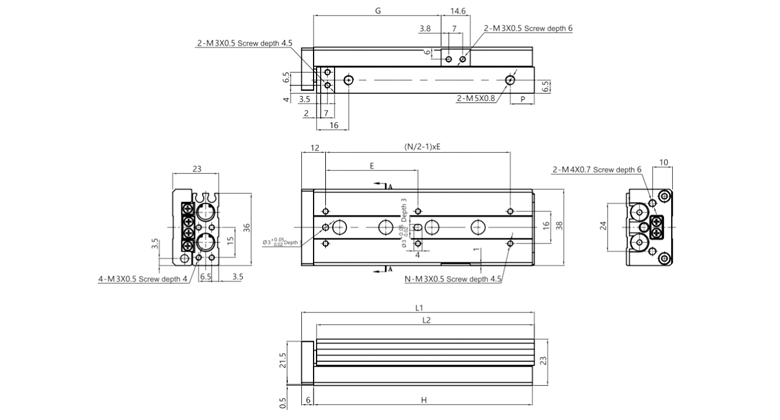

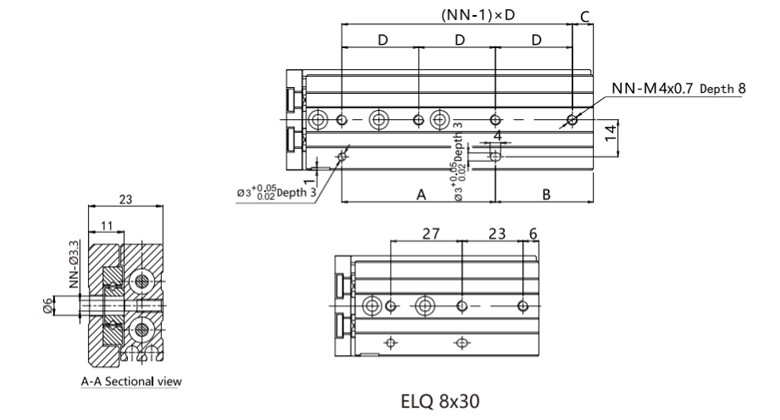

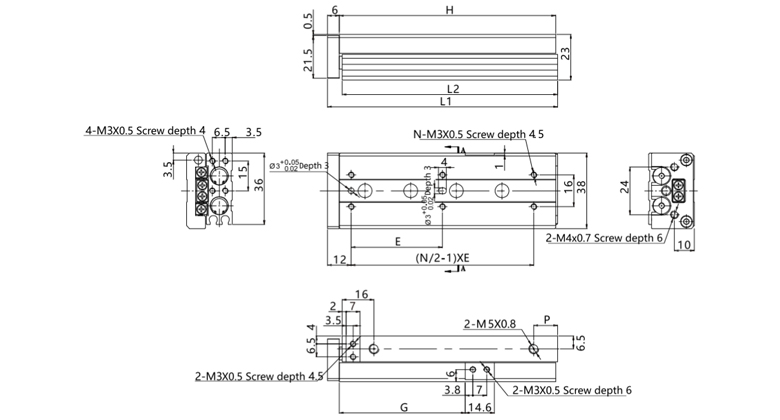

ELQ 8 -
ELQ 8 -

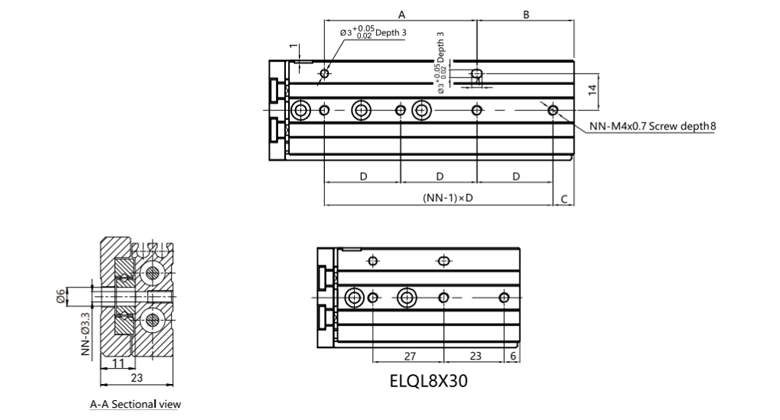

ELQL 8 -
ELQL 8
