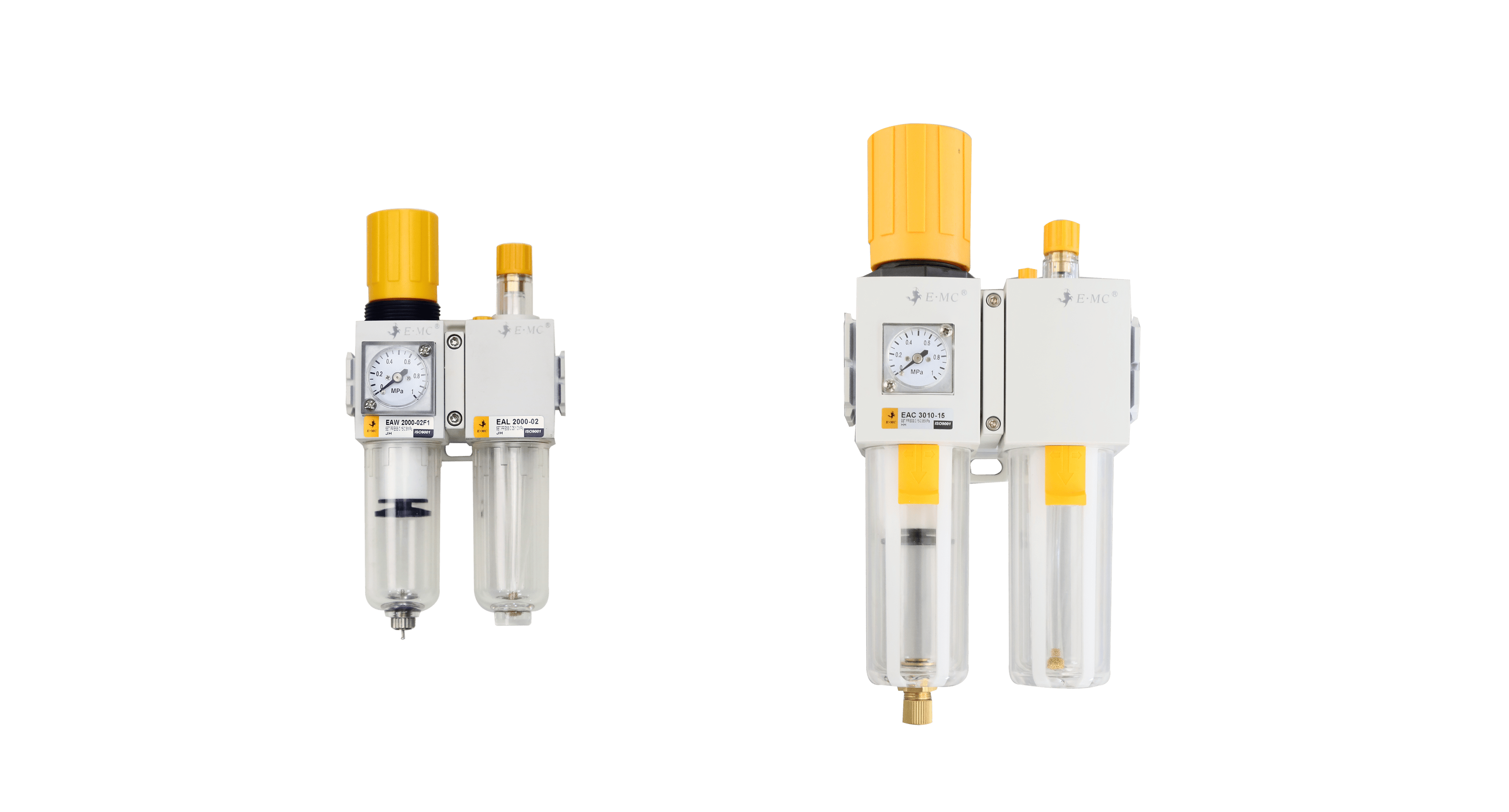

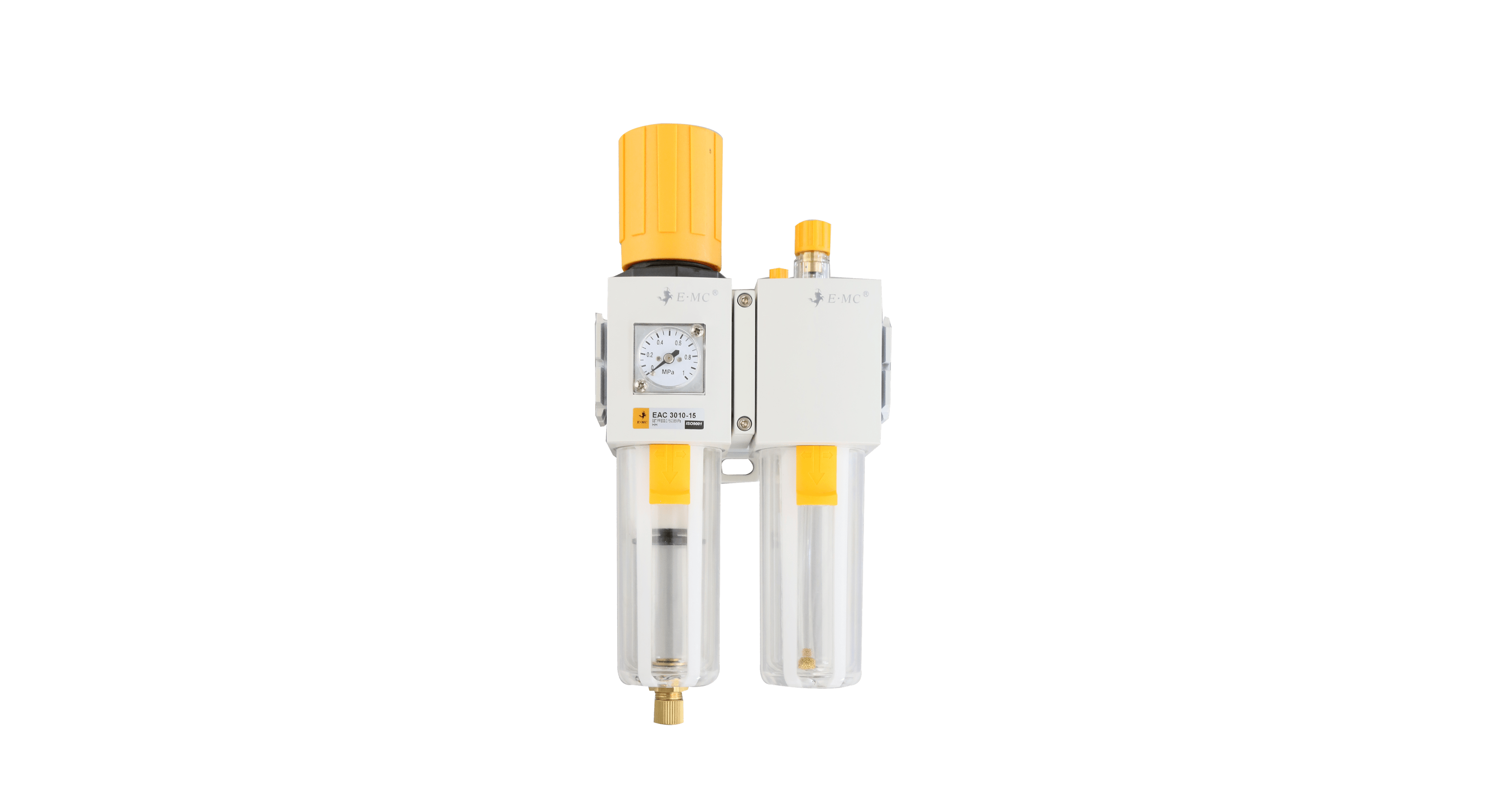

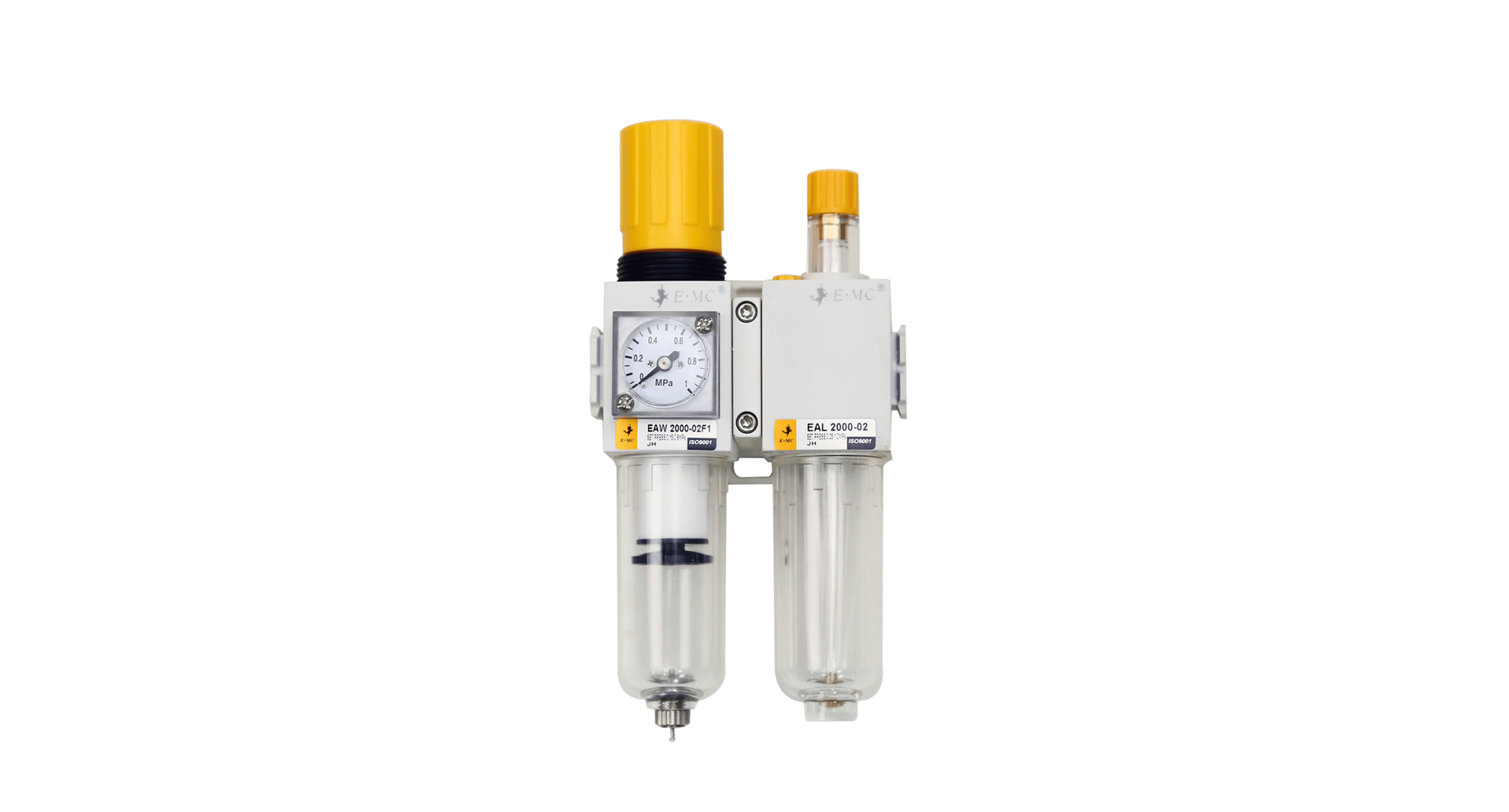

EAC2010 EAC3010 EAC4010 FR.L Unit

•Unique diversion structure, greatly improve the efficiency of water distribution

•The transparent plastic cover brings convenient observation, rustless and anti-corrosion .

•Special diaphram design leads the pressure adjustment to areliable and high precise       performance.

•Special drip nozzle design offers stable oil dripping and mist creating at low flow rate.

•Adding oil even if air supplying.

•Round gauge and Square gauge are optional.

•Manual Drain, Semi-auto drain, and Auto-drain are optional.

EAC2010 EAC3010 EAC4010 FR.L Unit.PDF
2D/3D CAD

Configure your product
Previous Next
Back
Specifications How to order?. Internal Structure Pressure Feature Flow Chart Main Dimensions
Specifications
Model EAC2010-01 EAC2010-02 EAC301D-02 EAC3010-03| EAC3010-04 EAC4010-03l EAC4010-04 EAC4010-06

Working medium

 Clean air (after 40um filtration）
Proof pressure(MPa) 1,5
Working Pressure Range(MPa) 0.15~1.0
Pressure Adjustment Range(MPa) 0.05~0.9
Working Temperature(℃)温 -5~60（No freezing）
Fillter Precision 40 um/5 um Optional
Recommended Oil Turbine No.1 Oil, ISO VG32
Bowl Material PC(Polycarbonate〉
Water Bowl Capacity(CC) 11 40 75
Oil Bowl Capacity(CC) 30 76 183
Oil Bowl Capacity 388 585 1628
Component Filter regulator EAW2000-01 EAW2000-02 EAW3000-02 EAW3000-03 EAW3000-04 EAW4D00-03 EAW400D-04 EAW4000-06
Lubricator EAL2000-01 EAL2000-02 EAL3000-02 EAL3000-03 EAL3000-04 EAL4000-03 EAL4000-04 EAL4000-06

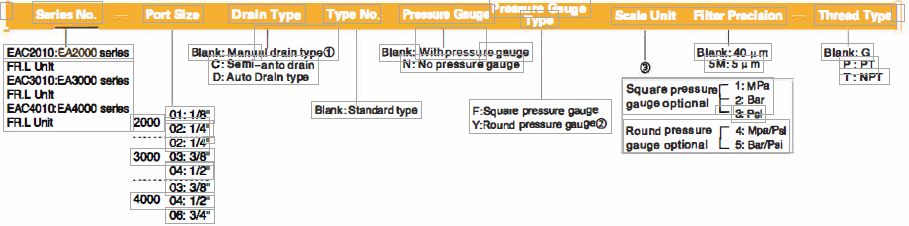

How to order?.

Order Example:

EA series FR.L unit, port size of 112", differential pressure drain type.with square pressure gauge, Mpa, 5 µ m, G thread, the ERP code la: EAC3010-04CF1 SM

Remark：①2000 series la only optional for manual drain type;

                ② Port of round pressure guage is M6;1t is not allowed to distr ibute pressure guages to customers；

                ③ Square pressure gauge la alngle scale, round pressure geuge Is double scale.

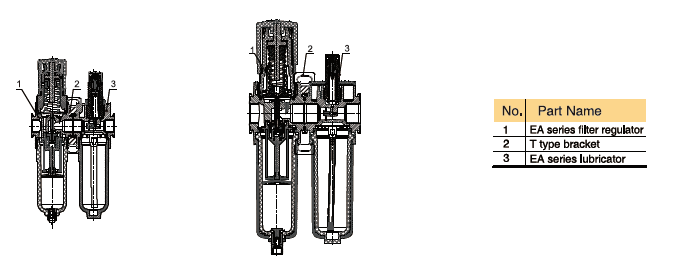

Internal Structure

R

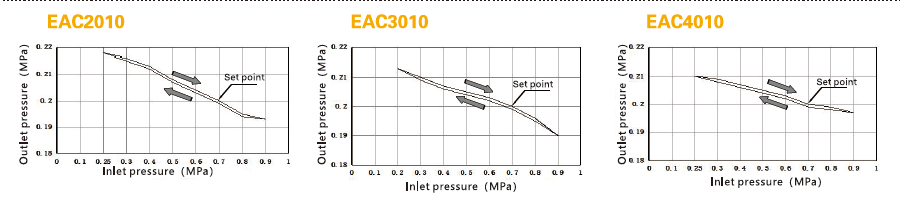

Pressure Feature

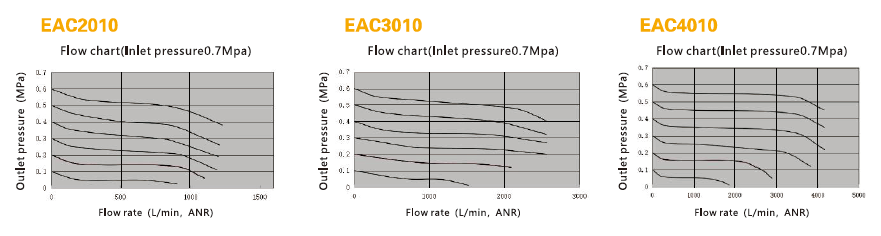

Flow Chart

.

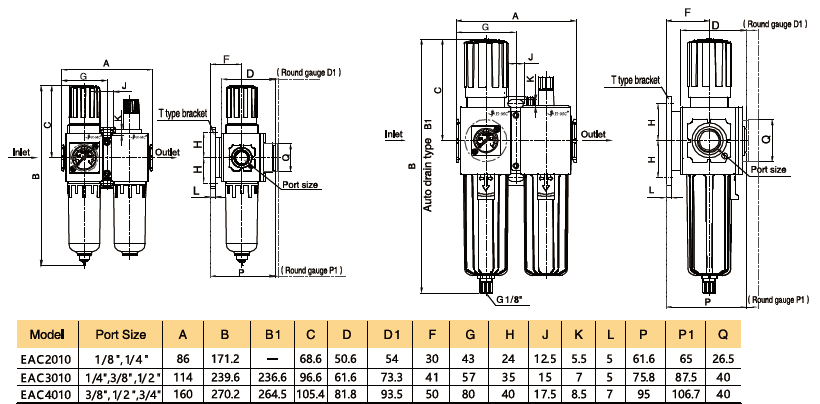

Main Dimensions
