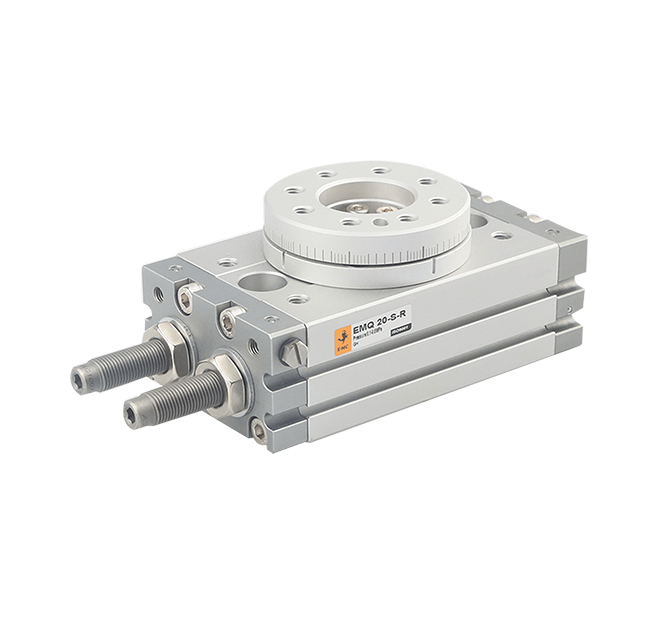

EMQ Series Rotary Cylinder

• Rack and pinion structure, smooth operation.

• Small rotation gap, good dynamics.

• Double cylinder structure, can achieve double output.

• Rack and pinion using special materials and special heat treatment process, cylinder service life is longer.

• The worktable has high machining precision, easy load installation and accurate positioning.

• There is a through hole in the middle of the table, through which the pipe can be distributed.

• The cylinder cylinder has positioning holes on both sides for easy installation and use.

• Adjustable screw fixed buffer and oil buffer two buffer options, the maximum buffer capacity of the oil buffer, is 3 to 5 times the adjustment screw fixed buffer, the buffer effect is better.
