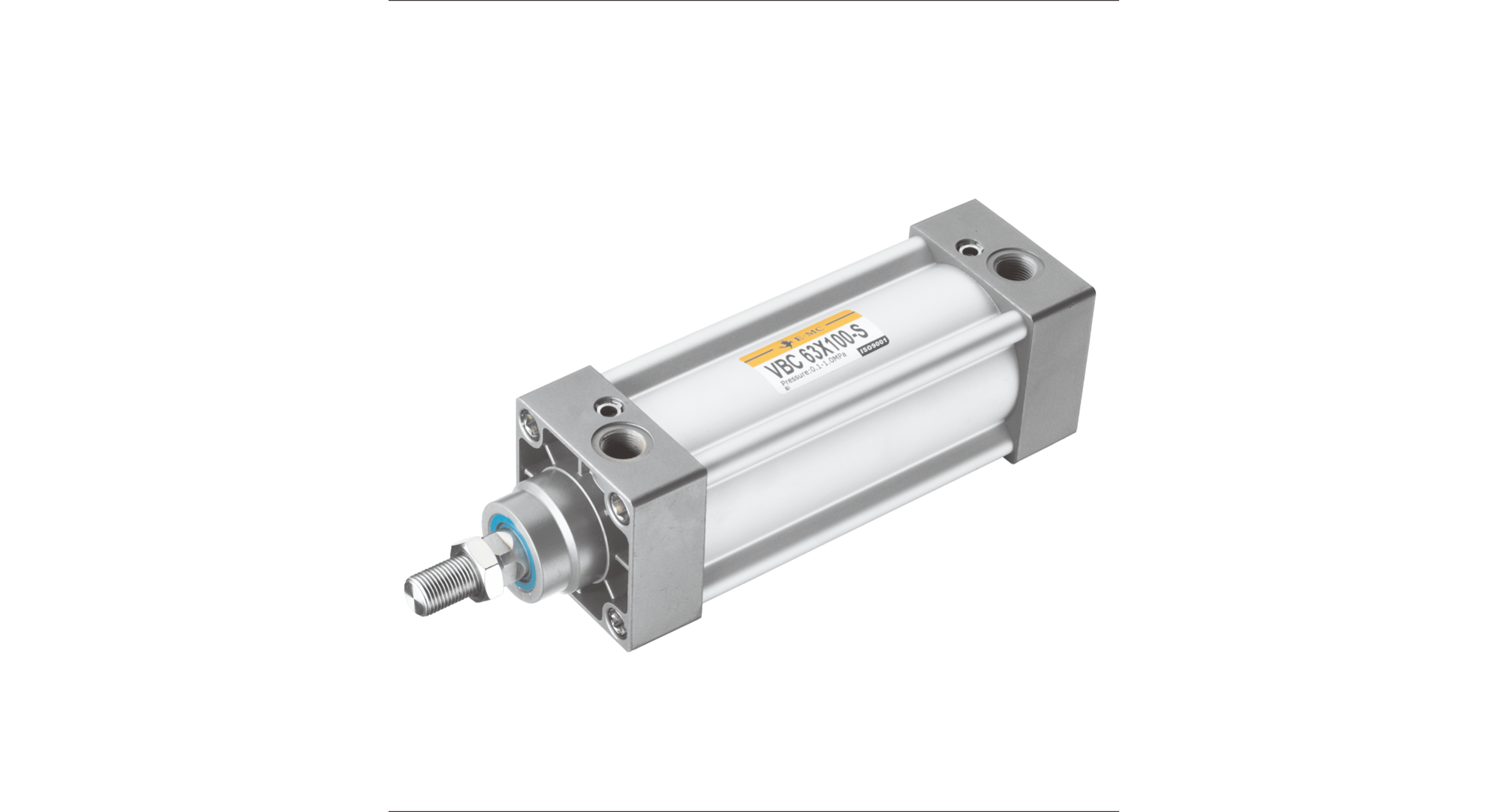

VBC/LBC Series ISO15552 Standard Cylinder
VBC/LBC Series ISO15552 Standard Cylinder.PDF
2D/3D CAD

Configure your product
Previous Next
Back
How to Order? Specifications Stroke

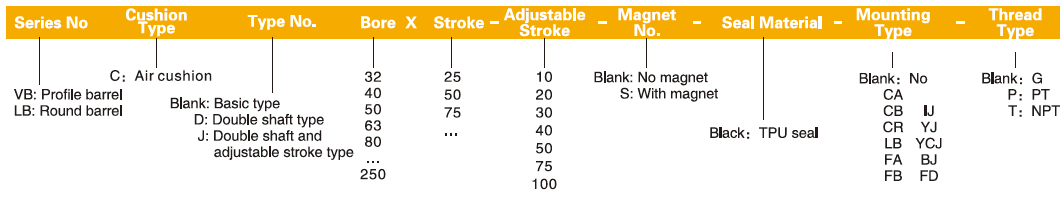

How to Order?

  • Order Example:VBC series, double shaft air cylinder, Bore 40mm, stroke 50mm, with magnet, TPU seal material, CA mounting accessory, NPT thread.lERP code is: VBCD 40X50-S-CA-T

Note:1. If cylinder with several different mounting accessories, please use this sequential coding: CA/CB/CR/LB/FA/FB/IJ/YJ/BJ/FD

2,VBC series, bore range: Φ32-Φ200;LBC series,bore range:Φ32~Φ250

3.No CR/LB option for Φ200

Specifications
Bore size(mm) 32 40 50 63 80 100 125 160 200 250
Action type Double Acting
Working medium Clean Air(40 μ m filteration)
Operating pressure(MPa) 0.1~1.0
Guaranteed pressure (MPa) 1.5
Ambient and fluid temperature(℃) -20~70(No freezing)
Speed range (mm/s) 50~800
Cushion type Air Cushion
Cushion stroke(mm) 27 30 36 34 35 42 50
Mounting type LB FA FB CA CB CR
Port Size G1/8 G1/4 G3/8 G1/2 G3/4 G1
Stroke
Bore(mm) Standard Stroke(mm) Max.Stroke(mm)
32 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 1900
40 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 1900
50~250 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 1900
