SHF Series Low Profile Air Gripper

• Stainless steel gripper & linear ball guide design, high precision, good rigidity,good corrosion resistance for longer life spans.

• Double piston structure design can provide bigger clamping force.

• The bottom of the body is equipped with positioning pin holes to effectively enhance the installation accuracy and improve the consistency of repeated disassembly and positioning.

• The Gripper can be installed from four directions freely.

• ompared with the parallel air gripper with the same clamping force, this thin body design reduces the overall height by 50%, which effectively reduces the installation space and shaking torque, reduces the deviation, and improves the accuracy.

• The body is designed with a buried induction switch slot to reduce the space.

• All series are with magnetic.

SHF Series Low Profile Air Gripper.PDF

2D/3D CAD

Configure your product

Previous Next

Back

How to Order? Specification Standrad Stroke

How to Order?

Order Example:SHF Compact air gripper,Bore12,Medium stroke,Side air intake, with magnet,ERP code is:SHF12D1R

Specification

Bore size(mm)		8	12	16	20
Action type		Double Acting
Working medium		Clean Air(40 μ m filteration)
Operating pressure		0.15~0.7MPa	0.1~0.7MPa
Working temperature(℃)		-20~70（No freezing）
Oil		Not required
Repetition accuracy ①		士0.05mm
Max. operating frequency	Short Stroke	120c.p.m
	Medium Stroke	120c.p.m
	Long Stroke	60c.p.m
Port Size		M3X0.5	M5xo.8

① Is the value of the gripper without the role of bias load state; conversely, affected by the tooth gapbetween the rack and gear, the maximum value is 15mm

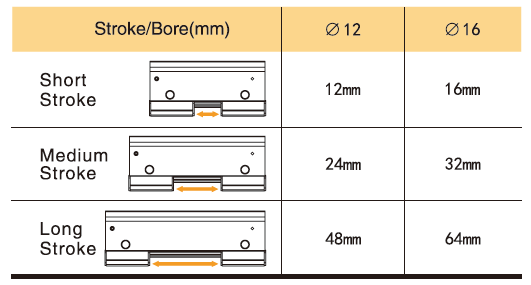

Standrad Stroke

Note: The short, medium and long strokes are standardized for each bore, and the most suitable stroke can be selected to be easier matched.
